ABBIDOT AB-T70 Dog Training Collar User Manual

1. Introdución

Thank you for choosing the ABBIDOT AB-T70 Dog Training Collar. This manual provides detailed instructions for the safe and effective use of your new training system. Please read it thoroughly before operation to ensure proper setup and to maximize the benefits for your dog's training.

The ABBIDOT AB-T70 is designed to assist in training dogs weighing 5 to 130 lbs, offering a range of up to 4500 feet. It features six training modes: three audible tones, vibration (36 levels), and static stimulation (118 levels), along with an enhanced night light and IPX7 waterproof rating for the receiver collar.

2. Produto rematadoview

2.1 Compoñentes incluídos

• Mando a distancia T70
• T70 Collar Receiver (x2 for 2-collar variant)
• Collar Strap (x2 for 2-collar variant)
• Cable de carga USB tipo C
• Ferramenta de proba de luz
• Silicone Caps (8 pieces)
• Contact Points (8 pieces)
• Acollador
• Manual de usuario (este documento)
• Dog Training Booklet

2.2 Características principais

• Six Training Modes: Beep (9 levels), Vibration (36 levels), Static Stimulation (118 levels), and E-Clicker.
• Rango estendido: Up to 4500 feet (approximately 1370 meters) for outdoor training.
• Multi-Dog System: Supports training of up to 6 dogs simultaneously with one remote.
• IPX7 Waterproof Receiver: Suitable for use in various weather conditions and water activities.
• Enhanced Night Light: Three adjustable LED light modes for visibility in low-light conditions.
• Batería de longa duración: Remote lasts up to 55 days, receiver collar up to 45 days on a single charge.
• Pantalla fácil de usar: Large, clear display on the remote for easy operation.
• Bloqueo de seguridade: Prevents accidental static stimulation.

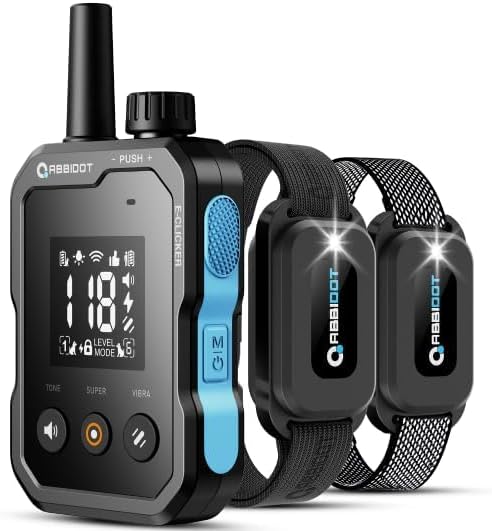

Image: The ABBIDOT AB-T70 remote control and two receiver collars, showcasing the complete training system.

Imaxe: Unha vez máisview diagram highlighting the key features of the ABBIDOT AB-T70 dog training collar system.

3. Configuración

3.1 Carga dos dispositivos

Before first use, fully charge both the remote control and the receiver collar. Use the provided USB Type-C cable. The indicator lights will show charging status (refer to the specific light patterns in the included training booklet).

3.2 Pairing the Remote and Receiver

1. Turn on the receiver collar by pressing and holding its power button until the indicator light illuminates.
2. Acende o mando a distancia.
3. On the remote, select a channel (1-6) for the collar you wish to pair.
4. Press and hold the power button on the receiver collar again until the indicator light flashes rapidly.
5. Within 10 seconds, press any training mode button (Tone, Vibration, or Static) on the remote. The collar's indicator light will flash slowly, indicating successful pairing.
6. Repeat for additional collars on different channels if you have multiple receivers.

3.3 Axuste do colar

Proper fit is crucial for effectiveness and comfort. The collar should be snug but not too tight. You should be able to fit two fingers comfortably between the collar strap and your dog's neck. Ensure the contact points (if using static stimulation) are making direct contact with your dog's skin. For dogs with thick fur, you may need to trim some fur to ensure proper contact.

Nota importante:

If you do not intend to use the static stimulation function, there is no need to install the metal contact points or silicone caps. The collar will function with beep and vibration modes without these accessories.

Image: Visual representation of the remote and collar battery life, along with the maximum control range.

Imaxe: Unha detallada view of the remote control's display, showing various indicators and settings.

4. Instrucións de funcionamento

4.1 Control remotoview

The remote features a large display and intuitive buttons for easy control:

• Botón de ton: Activates audible beep.
• Botón de vibración: Activates vibration.
• Static Button: Activates static stimulation.
• E-Clicker Button: For positive reinforcement training.
• Botón de canle: Switches between paired collars (1-6).
• Level Adjustment Dial/Buttons: Adjusts intensity levels for modes.
• Bloqueo de seguridade: Prevents accidental static stimulation.

4.2 Modos de adestramento

The AB-T70 offers six distinct training modes:

• Ton (Bip): Provides an audible signal. There are 9 adjustable levels of tone. This is often used as a warning or attention-getting signal.
• Vibración: Delivers a physical vibration to the collar. There are 36 adjustable levels of vibration. Useful for dogs that respond well to tactile cues.
• Estimulación estática: Provides a safe, momentary static pulse. There are 118 adjustable levels of static stimulation. This mode should be used cautiously and at the lowest effective level.
• Modo personalizado: Allows for a combination of Tone + Vibration or a specific Static level to be set as a quick-access mode.
• E-Clicker: A distinct sound used for positive reinforcement, signaling to your dog that they have performed a desired action correctly.

4.3 Adjusting Levels and Safety Lock

Use the level adjustment dial or buttons on the remote to increase or decrease the intensity of vibration or static stimulation. Always start at the lowest level and gradually increase until your dog shows a subtle response, indicating they feel the correction.

To prevent accidental static stimulation, the remote features a safety lock. Refer to the remote's display and controls for engaging and disengaging this feature.

4.4 Función de luz nocturna

The receiver collar includes an LED night light with three adjustable modes (Flashlight, Slow Flash, Explosive Flash) to enhance your dog's visibility in low-light conditions. Activate and cycle through these modes using the designated button on the remote or collar (refer to the training booklet for specific controls).

Image: A dog wearing the ABBIDOT collar, illustrating the various training modes available.

Image: A trainer using the E-clicker function of the remote for positive reinforcement during a training session.

Image: A dog wearing the collar with its night light activated, demonstrating enhanced visibility in the dark.

Image: The remote control highlighting its safety lock and level adjustment features for secure and precise operation.

5. Consellos de adestramento

Effective training requires consistency, patience, and understanding of your dog's behavior. Here are some general tips:

• Start with Positive Reinforcement: Always pair desired behaviors with rewards (treats, praise, play). The E-Clicker can be a valuable tool for marking desired behaviors precisely.
• Presentar gradualmente: Allow your dog to get accustomed to wearing the collar before introducing any stimulation.
• Begin with Low Levels: When using vibration or static stimulation, always start at the lowest level and increase only until your dog acknowledges the correction. The goal is to get their attention, not to cause distress.
• Short, Frequent Sessions: Keep training sessions brief and positive to maintain your dog's engagement.
• A coherencia é clave: Use commands and corrections consistently so your dog understands what is expected.
• Observe Your Dog: Pay close attention to your dog's reactions. If they show signs of fear or anxiety, reduce the intensity or stop the session.
• Address Specific Behaviors: Use the collar to correct specific unwanted behaviors like excessive barking, jumping, or running away.

6. Mantemento

6.1 Limpeza

Regularly clean the remote and receiver collar with a damp cloth. Ensure the charging ports are dry before charging. Avoid using harsh chemicals or abrasive cleaners.

6.2 Coidado coa batería

To prolong battery life, avoid fully discharging the devices frequently. Charge them when the battery indicator is low. If storing for an extended period, charge them to about 50% and recharge every few months.

6.3 Almacenamento

Store the training collar system in a cool, dry place away from direct sunlight and extreme temperatures.

7 Solución de problemas

If you encounter issues with your ABBIDOT AB-T70 Dog Training Collar, please refer to the following common problems and solutions:

If these solutions do not resolve the issue, please contact ABBIDOT customer support.

8. Especificacións

9. Garantía e soporte

9.1 Información da garantía

The ABBIDOT AB-T70 Dog Training Collar comes with a 1 ano de garantía from the date of purchase. This warranty covers manufacturing defects and ensures your product functions as intended under normal use. Please retain your proof of purchase for warranty claims.

9.2 Atención ao cliente

For any questions, concerns, or technical assistance, please do not hesitate to contact our dedicated customer support team. We are here to help you achieve the best training results with your ABBIDOT product.

Correo electrónico: Support@abbidot.com

Image: ABBIDOT customer support contact information.
