ABBIDOT Dog Training Collar User Manual

1. Introdución

The ABBIDOT Dog Training Collar is designed to assist in correcting unwanted dog behaviors such as excessive barking, destructive chewing, and other common issues. This system offers multiple training modes and an extended range to facilitate effective communication between you and your dog. It is suitable for dogs weighing between 5 and 120 lbs, with neck sizes ranging from 6 to 27 inches.

Image 1.1: The ABBIDOT Dog Training Collar system, featuring the remote control and the collar receiver.

2. Información importante de seguridade

• This product is intended for dog training purposes only.
• Keep the device away from infants and young children.
• Do not use this collar on aggressive dogs.
• Ensure the collar is properly fitted to prevent skin irritation. Avoid leaving the collar on for more than 12 hours per day.
• The remote control is not waterproof; keep it away from water.

3. Contido do paquete

Verifica que todos os elementos estean presentes no teu paquete:

• 1 x mando a distancia
• 1 x Collar Receiver (Ink Blue)
• 1 x Adjustable Nylon Strap
• 1 x cable de carga USB
• 1 ferramenta de luz de proba
• 2 x Sets of Contact Points (short and long)
• 1 x Manual de usuario

4. Características do produto

• Catro modos de adestramento: Offers 9 sound tones, 36 vibration levels, and 36 safe static stimulation levels for comprehensive training.
• Rango estendido: Operates effectively up to 3,300 feet, providing ample space for training.
• Dual-Channel System: One remote can control two receiver collars simultaneously, allowing for multi-dog training.
• IPX7 Waterproof Receiver: The collar receiver is fully waterproof, suitable for use in various weather conditions and environments.
• Built-in LED Night Light: Enhances visibility of your dog in low-light conditions, aiding in location and safety.
• Bloqueo de seguridade: Prevents accidental activation of static stimulation, ensuring safe and controlled training.
• Batería de longa duración: Remote lasts up to 35 days, and the collar receiver up to 25 days on a single charge.

Imaxe 4.1: Acabadoview of the four training modes and dual-dog switch capability.

Image 4.2: The IPX7 waterproof receiver allows dogs to play freely in water.

Image 4.3: The training collar offers an extended range of up to 3,300 feet.

Image 4.4: The built-in LED light on the collar aids in locating your dog at night.

5. Configuración

5.1 Carga dos dispositivos

1. Connect the USB charging cable to the charging port on both the remote control and the collar receiver.
2. Plug the other end of the cable into a standard USB power adapter (not included).
3. The indicator light on both devices will show charging status (refer to device for specific light indications).
4. Charge for approximately 2-3 hours until fully charged. The remote offers up to 35 days of battery life, and the collar up to 25 days.

5.2 Axuste do colar

Proper fit of the collar is crucial for effective and safe operation.

1. Ensure the collar is turned off before fitting.
2. Place the receiver on your dog's neck, ensuring the contact points are positioned underneath, touching the skin.
3. Adjust the strap so it is snug but not too tight. You should be able to fit two fingers comfortably between the strap and your dog's neck.
4. If your dog has thick fur, you may need to trim the fur around the contact points to ensure proper skin contact.
5. The collar is designed for dogs with neck sizes from 6 to 27 inches and weights from 5 to 120 lbs.

Image 5.1: The adjustable strap accommodates dogs from 5 to 120 lbs with neck sizes from 6 to 27 inches.

6. Instrucións de funcionamento

6.1 Activar/Desactivar

• Control remoto: Press and hold the power button until the screen illuminates/shuts off.
• Receptor de colar: Press and hold the power button until the indicator light turns on/off.

6.2 Selecting Training Modes and Levels

The remote control features dedicated buttons for each training mode:

• Modo de son: Press the sound button to emit an audible tone. There are 9 different tones available.
• Modo de vibración: Press the vibration button to deliver a vibration. Levels 1-36 are adjustable.
• Modo de estimulación estática: Press the static stimulation button to deliver a safe static pulse. Levels 1-36 are adjustable.

To adjust the intensity level for Vibration or Static Stimulation, use the '+' and '-' buttons on the remote control. The current level will be displayed on the remote's screen.

6.3 Dual-Channel Operation

The remote supports training two dogs simultaneously.

• Use the channel switch button on the remote to toggle between Dog 1 and Dog 2.
• Ensure each collar receiver is paired to its respective channel (refer to pairing instructions if needed, typically automatic upon first power-on).

6.4 Security Lock

The remote control includes a security lock feature to prevent accidental static stimulation.

• To lock/unlock the static stimulation function, push the designated security lock switch (often labeled 'PUSH +') on the remote.
• When locked, static stimulation cannot be activated.

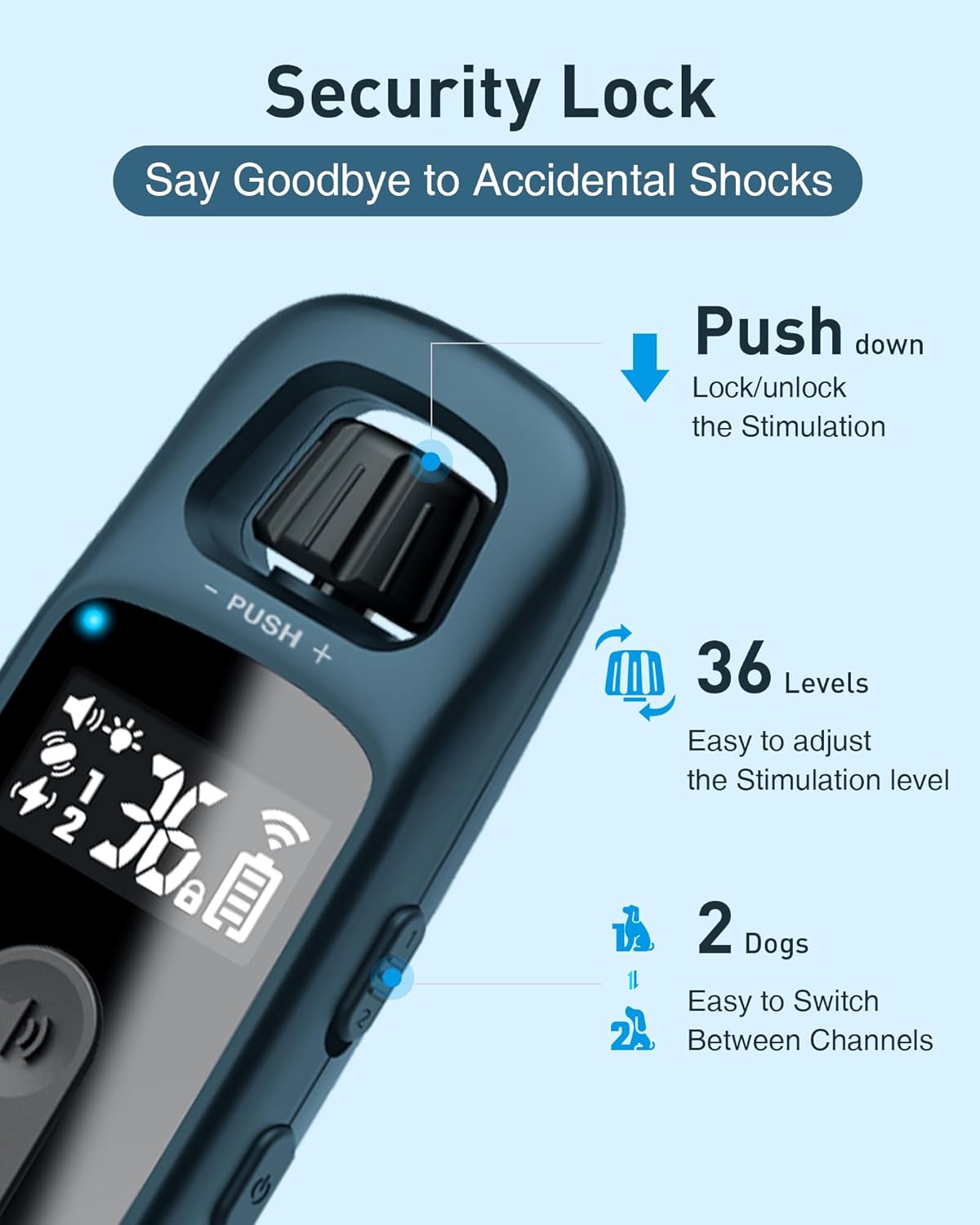

Image 6.1: The remote control features a security lock to prevent accidental static stimulation and easy level adjustment.

6.5 Luz nocturna LED

The collar receiver has a built-in LED light for visibility.

• Press the dedicated light button on the remote control to activate the LED light on the collar.
• This feature is useful for locating your dog during evening walks or in low-light conditions.

7. Mantemento

• Limpeza: Regularly clean the collar strap and receiver with a damp cloth. Ensure the contact points are free of dirt and debris.
• Coidado da batería: To prolong battery life, avoid fully discharging the devices frequently. Charge them when the battery indicator is low. Store in a cool, dry place if not used for extended periods.
• Exposición á auga: While the receiver is IPX7 waterproof, the remote control is not. Protect the remote from water exposure.
• Puntos de contacto: Periodically check the contact points for wear and tear. Replace if necessary.

8 Solución de problemas

• O dispositivo non se acende: Ensure both the remote and receiver are fully charged.
• Sen resposta do colar:
  • Check if the collar receiver is turned on.
  • Verify that the remote and receiver are paired (re-pair if necessary, consult specific pairing instructions if provided in a separate guide).
  • Asegúrate de que a batería do mando a distancia non estea baixa.
  • Check the range; you might be too far from the receiver.
• Static Stimulation Not Working:
  • Ensure the security lock on the remote is disengaged.
  • Check that the contact points are making proper contact with the dog's skin.
  • Use the test light tool to verify the static function.
• Collar Causing Skin Irritation:
  • Remove the collar immediately.
  • Check for proper fit; it might be too tight or worn for too long.
  • Clean the contact points and the dog's neck area.
  • Consulte un veterinario se a irritación persiste.

9. Especificacións

10. Garantía e soporte

For warranty information, product support, or to address any concerns, please refer to the contact information provided with your purchase or visit the official ABBIDOT websitio. Garda o comprobante de compra para reclamacións de garantía.
