Wiltec NW-SOFT-C1 Automatic Water Softener: User Manual

1. Introdución

Thank you for choosing the Wiltec NW-SOFT-C1 Automatic Water Softener. This device is designed to provide a continuous supply of softened water by reducing water hardness through an ion exchange process. This manual contains important information regarding the installation, operation, and maintenance of your water softener. Please read it thoroughly before use to ensure proper function and longevity of the product.

2. Instrucións de seguridade

• Always disconnect the power supply before performing any maintenance or service.
• Ensure the installation location is dry, well-ventilated, and protected from freezing temperatures and direct sunlight.
• The device must be installed by a qualified professional in accordance with local plumbing and electrical codes.
• Non use o aparello se o cable de alimentación ou o enchufe están danados.
• Manteña os nenos e o persoal non autorizado lonxe da unidade durante o funcionamento e o mantemento.
• Use only regeneration salt specifically designed for water softeners.
• Ensure proper drainage for the regeneration wastewater.

3. Produto rematadoview

The Wiltec NW-SOFT-C1 is a compact and versatile automatic water softener capable of softening up to 500 liters of water per hour. It features an intuitive display for setting initial water hardness and an automatic control system for regeneration.

3.1 Características principais

• Operación automática: Provides continuous soft water supply.
• Pantalla fácil de usar: Easy setting of initial water hardness.
• Appliance Protection: Reduces limescale buildup, extending the lifespan of household appliances.
• Ion Exchange Technology: Utilizes special resin to remove calcium and magnesium ions.
• Automatic Resin Regeneration: Ensures consistent performance with minimal intervention.

3.2 Compoñentes e dimensións

Familiarize yourself with the main components and overall dimensions of the water softener for proper placement and installation planning.

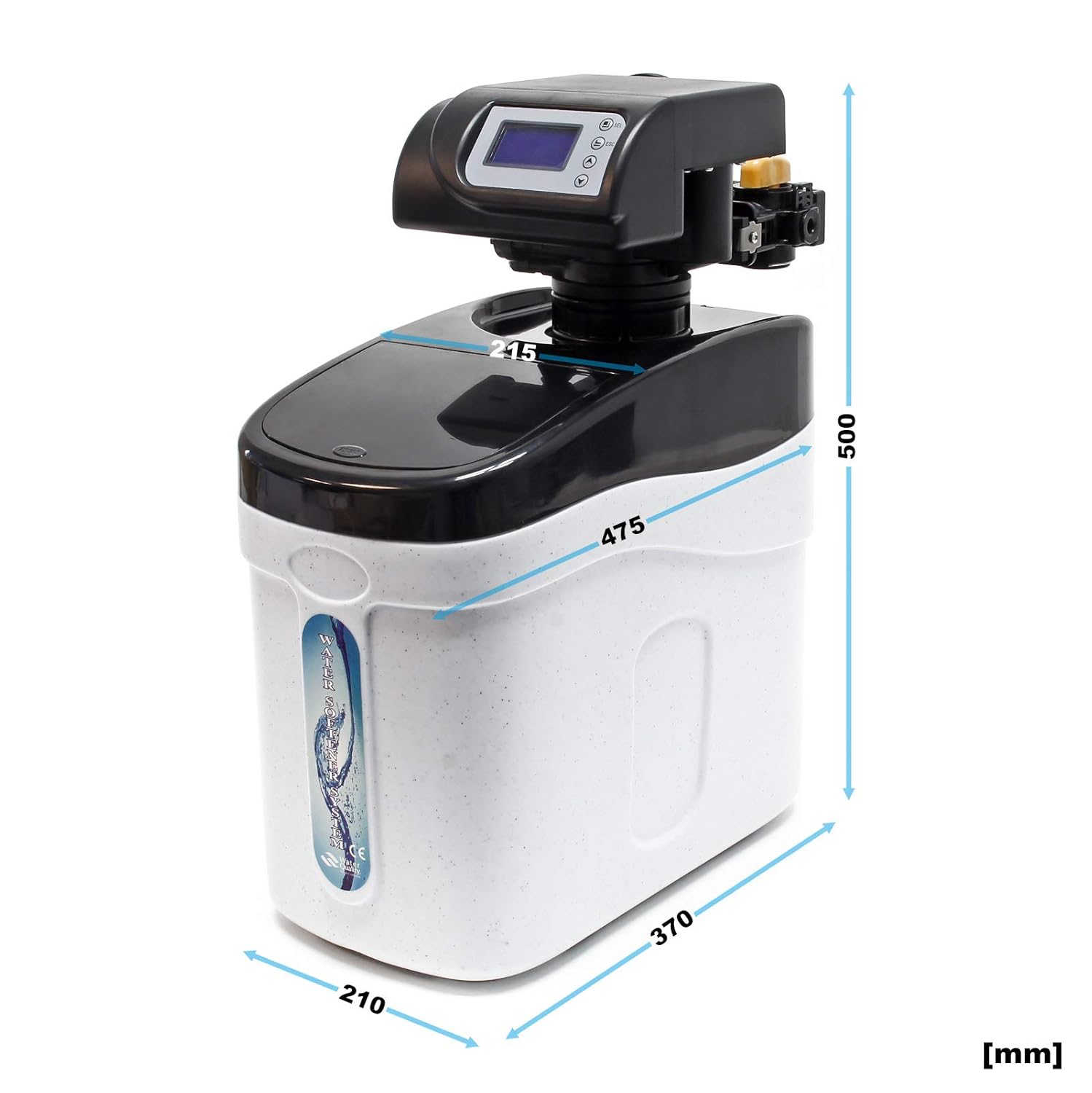

Figura 1: Fronte view of the Wiltec NW-SOFT-C1 Water Softener with overall dimensions in millimeters. The unit measures approximately 210mm wide, 370mm deep, and 500mm high.

Figura 2: Lateral view of the Wiltec NW-SOFT-C1 Water Softener, showing the drain pipe connection with a diameter of 14mm and a height of 400mm.

Figura 3: Interna de arriba abaixo view of the brine tank, showing internal dimensions for salt placement. The tank measures approximately 120mm by 175mm internally.

4. Configuración e instalación

Proper installation is crucial for the efficient operation of your water softener. Refer to the diagram below for connection details.

4.1 Pasos da instalación

1. Escolla localización: Select a suitable location near the main water supply, a drain, and a power outlet. Ensure adequate space for maintenance and salt replenishment.
2. Water Supply Shut-off: Pecha o abastecemento principal de auga da túa casa.
3. Conectar a entrada/saída: Connect the incoming hard water line to the softener's inlet and the softened water line to the outlet. The connections are 26.44 mm (¾") AG.
4. Válvula de derivación: Install a bypass valve system to allow for manual bypass of the softener if needed (e.g., for outdoor watering).
5. Liña de drenaxe: Connect the drain line (Ø 14 mm) from the control valve to a suitable drain. Ensure the drain line has an air gap to prevent back-siphonage.
6. Brine Line: Connect the brine line from the control valve to the brine well inside the salt tank.
7. Conexión de alimentación: Conecte o adaptador de alimentación a unha toma eléctrica conectada a terra.
8. Add Salt: Encha o depósito de salmoira con sal suavizante de auga.
9. Inicio inicial: Slowly open the main water supply valve to fill the softener with water. Check for leaks.
10. Program Controller: Set the initial water hardness level on the display according to your local water supply data.

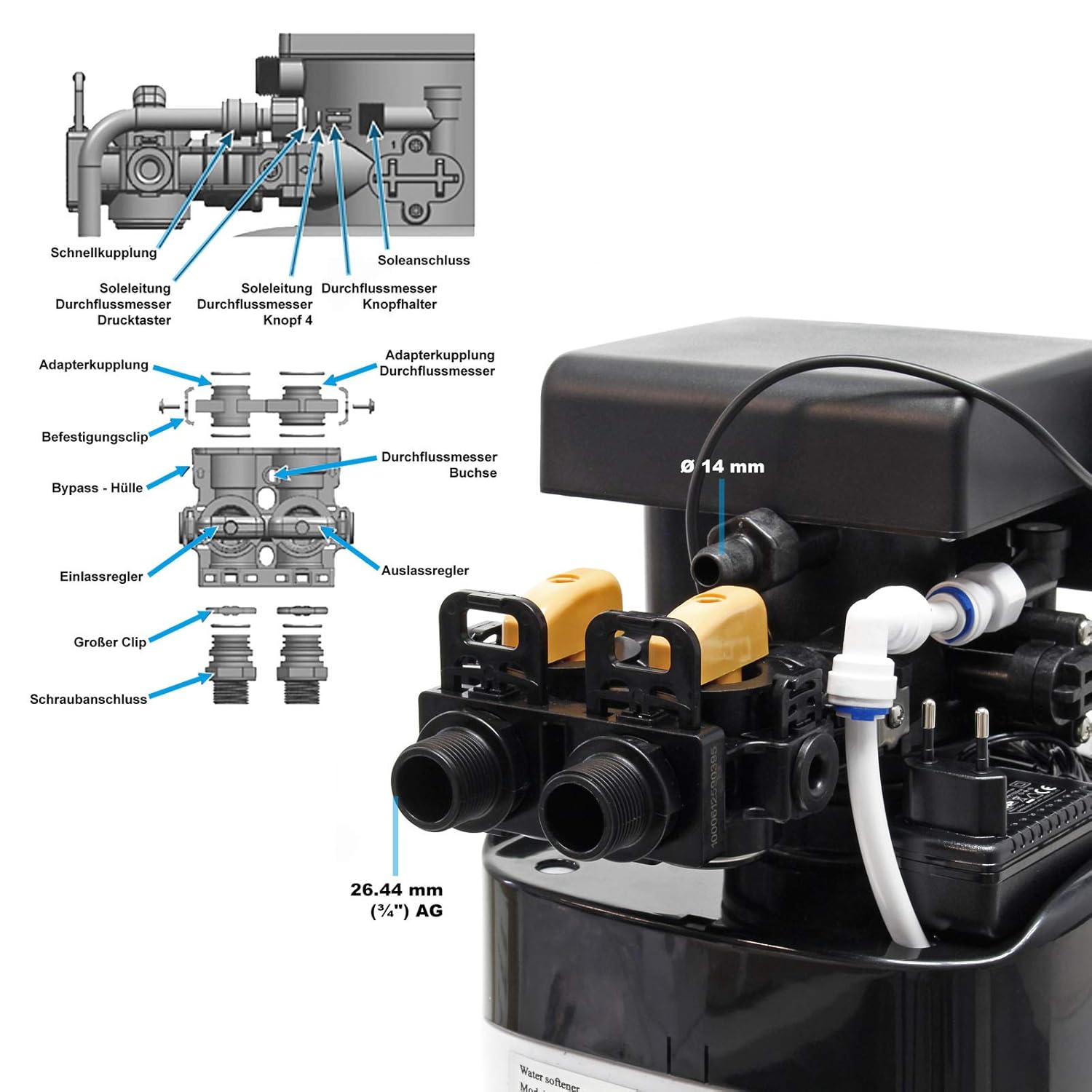

Figure 4: Detailed diagram showing the various connection points and components for installation, including quick couplings, brine line, bypass housing, inlet/outlet regulators, and screw connections. The main connections are 26.44 mm (¾") AG.

5. Instrucións de funcionamento

The Wiltec NW-SOFT-C1 operates automatically once configured. The control panel allows for initial setup and monitoring.

5.1 Programación inicial

• Upon first power-up, the display will prompt you to set the current time and date.
• Navigate through the menu using the control buttons to find the water hardness setting.
• Enter your local water hardness value (e.g., in dH or ppm). This value is critical for the softener to calculate regeneration cycles accurately.
• Confirm settings. The system will then automatically manage the softening process and regeneration cycles.

5.2 How Water Softening Works (Ion Exchange)

The water softener utilizes a resin bed to remove hardness minerals. Hard water containing calcium (Ca²⁺) and magnesium (Mg²⁺) ions passes through the resin, which contains sodium (Na⁺) ions. The resin attracts and holds the calcium and magnesium ions, releasing sodium ions into the water. This process effectively softens the water.

Figure 5: Illustration of the ion exchange reaction. Calcium (Ca²⁺) and Magnesium (Mg²⁺) ions are exchanged for Sodium (Na⁺) ions on the ion exchange resin (cation exchanger).

Figure 6: Internal schematic showing the flow of water and the regeneration process. Hard water enters, passes through the resin bed in the pressure tank, becomes soft water, and exits. During regeneration, brine solution flushes the resin, and wastewater is drained. Key components include the automatic central control valve, brine hose, safety brine valve, float, suction lance, exchange resin, and cabinet tank.

6. Mantemento

Regular maintenance ensures optimal performance and extends the life of your water softener.

6.1 Salt Level Monitoring and Refill

• Check the salt level in the brine tank regularly, typically once a month.
• Ensure the salt level is always above the water level in the brine tank.
• Refill the tank with high-quality water softener salt (pellets, crystals, or blocks) when the level is low. Do not use rock salt or table salt.

6.2 Automatic Regeneration

The system automatically initiates regeneration cycles based on water usage and programmed hardness. During regeneration, a brine solution flushes the accumulated hardness minerals from the resin, recharging it with sodium ions. This process typically takes about an hour.

• Ensure there is always enough salt for regeneration.
• Do not interrupt a regeneration cycle.

6.3 Limpeza

• Periodically clean the brine tank to remove any salt residue or sludge. This can be done annually or as needed.
• Limpa o exterior da unidade con anuncioamp pano. Non use produtos de limpeza abrasivos.

7 Solución de problemas

This section addresses common issues you might encounter with your water softener.

8. Especificacións

Technical data for the Wiltec NW-SOFT-C1 water softener.

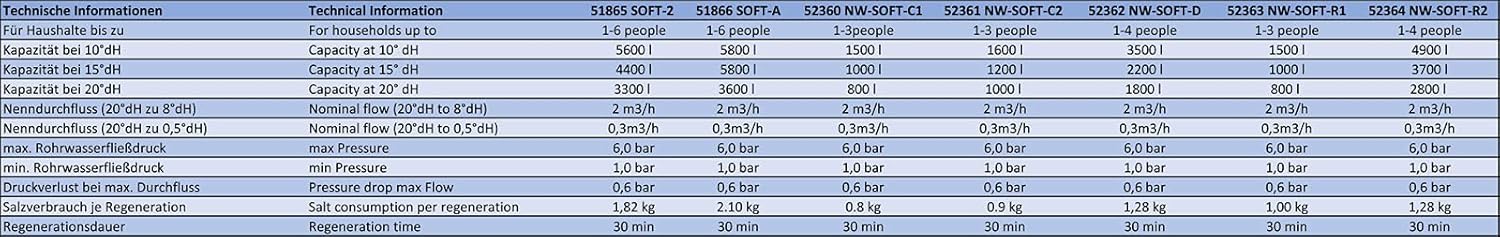

Figure 7: Technical information table comparing various Wiltec water softener models. For the NW-SOFT-C1, it shows capacity at 10°dH (1500L), 15°dH (1000L), 20°dH (800L), nominal flow (0.3m³/h), max pressure (6.0 bar), min pressure (1.0 bar), pressure drop (0.6 bar), salt consumption per regeneration (0.8 kg), and regeneration time (30 min).

9. Garantía e soporte

For warranty information, please refer to the documentation provided with your purchase or contact Wiltec customer service. Keep your proof of purchase for any warranty claims.

If you encounter issues not covered in the troubleshooting section or require further assistance, please contact Wiltec customer support. Contact details can typically be found on the manufacturer's websitio web ou a súa factura de compra.
