HALIDODO Red Light Therapy and Vibration Massage Knee Brace User Manual

1. Introdución

The HALIDODO Red Light Therapy and Vibration Massage Knee Brace is designed to provide comfort and support for various body areas, including the knee, joint, elbow, and shoulder. This device combines 660nm red light and 850nm near-infrared technology with vibration massage and heat to promote overall wellness and recovery.

Exención de responsabilidade legal: As declaracións sobre suplementos dietéticos non foron avaliadas pola FDA e non están destinadas a diagnosticar, tratar, curar ou previr ningunha enfermidade ou condición de saúde.

2. Información de seguridade

Please read all safety instructions before using the device. Improper use may result in injury or device malfunction.

• Consult a healthcare professional before use if you have any pre-existing medical conditions, are pregnant, or have sensitive skin.
• Do not use on open wounds, broken skin, or areas with severe inflammation.
• Manter fóra do alcance dos nenos.
• Non mergullo o dispositivo en auga ou outros líquidos.
• Discontinue use if you experience any discomfort or adverse reactions.
• Asegúrese de que o dispositivo estea completamente cargado antes do uso inicial.

3. Compoñentes do produto

O paquete inclúe os seguintes elementos:

• 1 x Red Light Massage Knee Pad
• 1 x Power Controller (Non-removable)
• 1 x Extension Belt
• 1 x USB-C Power Cord
• 1 x Manual de usuario
• 1 x bolsa de almacenamento

4. Configuración

4.1 Carga do dispositivo

Before first use, fully charge the device using the provided USB-C power cord. The built-in 2500 mAh battery provides an average operating time of 1-2 hours, depending on the selected intensity levels.

4.2 Attaching the Brace

The knee brace features adjustable straps and an optional extension belt to ensure a comfortable and secure fit on various body parts, including the knee, elbow, or shoulder.

• Position the brace over the desired area (e.g., knee).
• Secure the straps firmly but comfortably using the hook-and-loop fasteners.
• If needed, attach the extension belt to achieve a larger circumference.

5. Instrucións de funcionamento

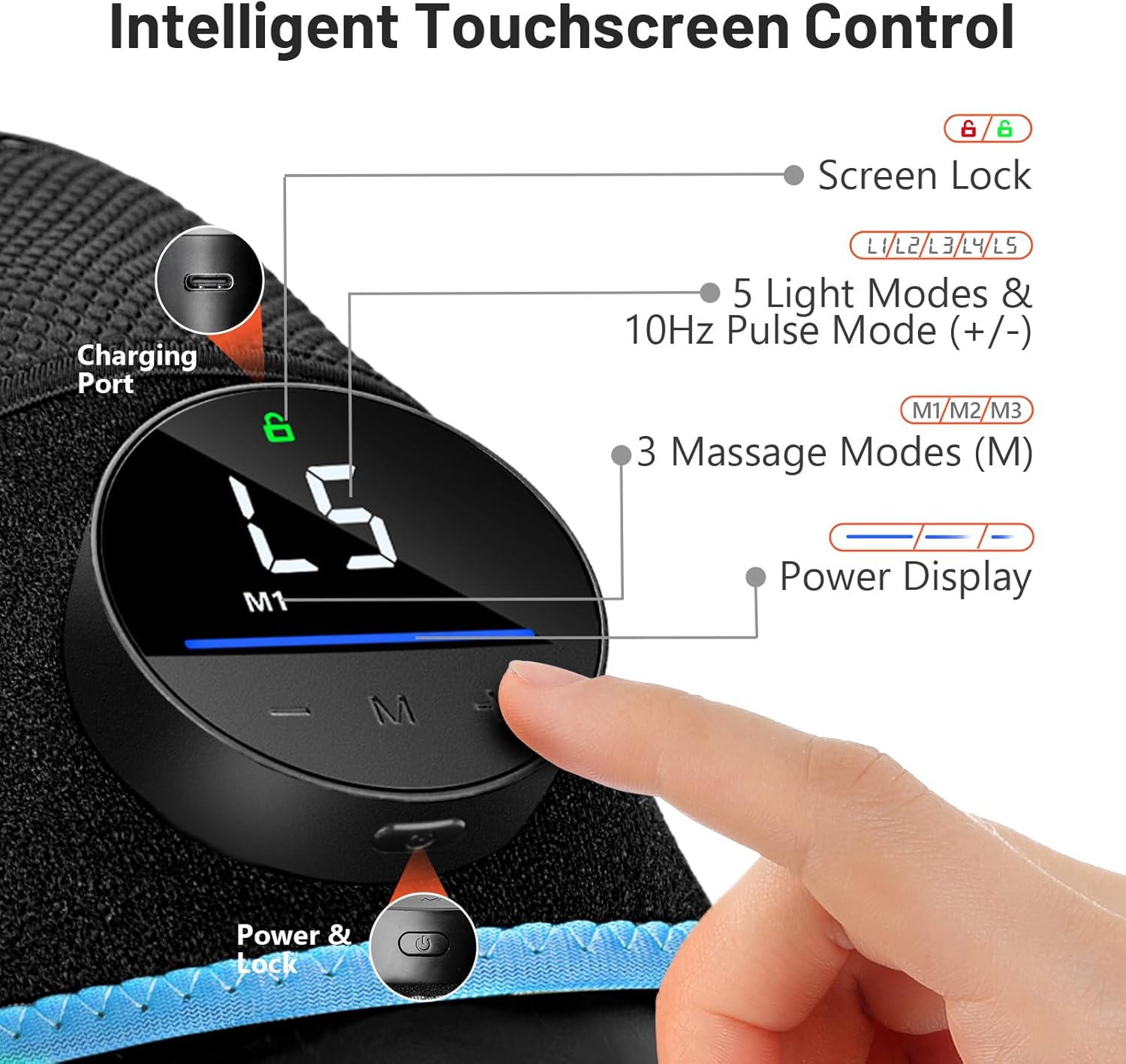

The device features an intelligent touchscreen control for easy operation.

5.1 Encendido/apagado

• Manteña premido o botón de acendido no panel de control para acender ou apagar o dispositivo.
• The display will illuminate, indicating the current settings.

5.2 Red Light Therapy Modes

The device offers 5 light therapy modes, combining 660nm red light and 850nm near-infrared light, along with a 10Hz pulse mode.

• Use the '+' and '-' buttons to cycle through the 5 light modes (L1-L5) and adjust intensity.
• The 660nm red light is absorbed for surface skin rejuvenation and healthy skin support.
• The 850nm near-infrared light penetrates deeper to promote comfort, relaxation, and post-activity recovery.
• A 10Hz pulse mode is available for deeper tissue treatment, stimulating blood circulation and reducing edema.

5.3 Vibration Massage Modes

Select from 3 levels of vibration massage to target tightness and promote circulation.

• Press the 'M' button to cycle through the massage modes (M1-M3).
• M1 (Gentle): Mellora a circulación sanguínea.
• M2 (Smoothing): Relieves joint and muscle tension and stiffness.
• M3 (Powerful): Stimulates deep tissues and alleviates discomfort.

5.4 Heated Function

The device features five independent heating zones to ensure consistent and comprehensive warmth coverage, boosting circulation and supporting natural recovery.

5.5 Auto-Timer

The device is equipped with a 20-minute auto-timer to ensure precise control over treatment duration and prevent overuse.

5.6 Versatile Application

The flexible design allows the brace to be used on various body parts beyond the knee, such as the elbow and shoulder, providing targeted relief wherever needed.

6. Mantemento

6.1 Limpeza

To clean the brace, gently wipe the surface with a damp cloth. Do not use harsh chemicals or abrasive cleaners. Ensure the device is completely dry before storing or recharging.

6.2 Almacenamento

Store the device in a cool, dry place away from direct sunlight and extreme temperatures. Use the provided storage bag to protect the brace when not in use.

7 Solución de problemas

7.1 O dispositivo non se acende

• Ensure the device is fully charged. Connect it to a power source using the USB-C cable and allow sufficient time for charging.
• Manteña premido o botón de acendido durante uns segundos para activalo.

7.2 Light or Vibration Not Working

• Check the selected mode on the touchscreen control. Adjust the light (L1-L5) or massage (M1-M3) settings.
• Ensure the device is securely fastened to the body part, as proper contact is necessary for optimal function.

8. Especificacións

9. Garantía e soporte

HALIDODO is committed to providing high-quality products and customer satisfaction.

• Política de devolución: Enjoy a 90-day return policy.
• Garantía: The device comes with a one-year guarantee.
• Atención ao cliente: 24/7 professional customer support is available for any assistance or inquiries.

For support, please refer to the contact information provided in your product packaging or visit the official HALIDODO websitio.
