Pecron F3000LFP Portable Power Station User Manual

1. Introdución

The Pecron F3000LFP is a high-capacity portable power station designed to provide reliable power for various applications, including home backup, RV use, camping, and off-grid living. Featuring a 3072Wh LiFePO4 battery and a 3600W pure sine wave AC output, it offers versatile charging options and multiple output ports to power a wide range of devices.

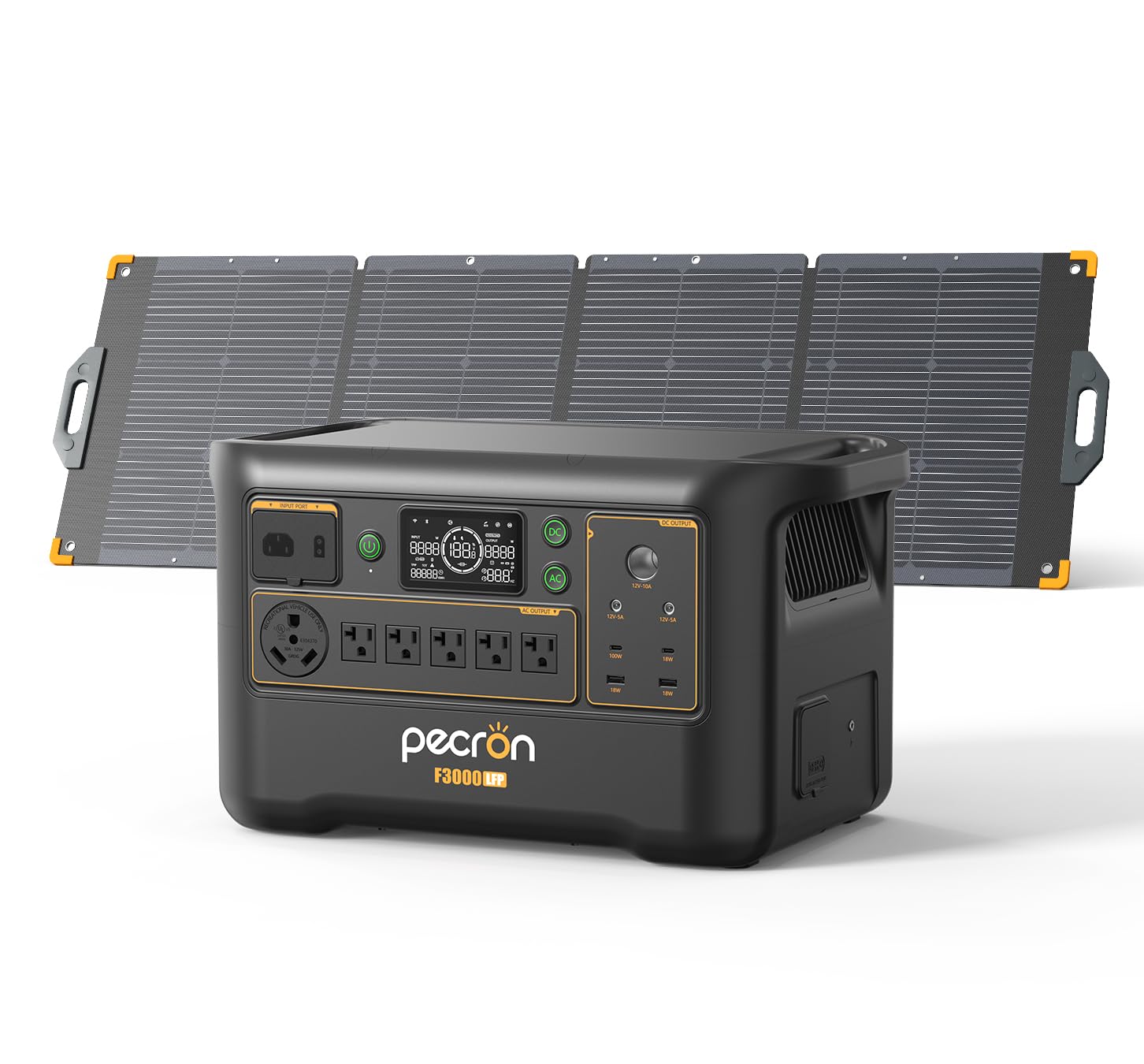

Image: The Pecron F3000LFP Portable Power Station, showcasing its robust design and front panel.

2. Información de seguridade

Please read all safety instructions carefully before operating the Pecron F3000LFP. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Non desmonte, repare nin modifique a unidade.
• Manteña a unidade lonxe do lume e da luz solar directa.
• Non empregue nin garde a unidade nun baño nin en zonas expostas á auga ou á humidade.
• Asegúrese de ventilar adecuadamente durante o uso para evitar o sobrequecemento.
• Manter fóra do alcance dos nenos e animais.
• Use só accesorios orixinais ou certificados.

3. Contido do paquete

The Pecron F3000LFP package includes the following items:

• Pecron F3000LFP Power Station
• 200W Solar Panel (quantity: 1)
• Cable de carga AC
• Cable de carga de coche
• Manual de usuario

Nota: The solar panel and power station may be delivered separately.

4. Produto rematadoview

The F3000LFP features a comprehensive interface for power input and output, along with a clear display for monitoring status.

4.1 Disposición do panel frontal

Imaxe: Detallada view of the Pecron F3000LFP front panel, highlighting AC outlets, USB ports, and the display screen.

• Portos de saída de CA: 6 standard AC outlets (3600W total, 30A pure sine wave output).
• Portos USB-C: 1x 100W USB-C, 1x 18W USB-C.
• Portos USB-A: 2x 18W USB-A.
• Portos de saída de CC: 1x Car charging port, 2x DC5525 ports.
• Pantalla de visualización: Mostra o nivel da batería e a potencia de entrada/saídatage, tempo de execución restante e indicadores de erro.
• Botón de encendido: Acende / apaga a unidade.
• Botóns CA/CC: Activates/deactivates respective output sections.

4.2 Sistema de refrixeración

The F3000LFP incorporates an ultra-quiet cooling system to maintain optimal operating temperatures, ensuring efficient performance even under heavy loads. The noise level is below 30dB for 900W output.

5. Configuración

5.1 Carga inicial

Before first use, fully charge the Pecron F3000LFP. Connect the AC charging cable to the input port on the power station and then to a wall outlet. The display will indicate charging status. The unit supports 1800W fast AC charging, reaching 0-100% in approximately 2 hours.

Image: The Pecron F3000LFP connected to an AC outlet for fast charging, demonstrating its rapid recharge capability.

5.2 Conexión de paneis solares

To charge using solar power, connect the included 200W solar panel to the solar input port on the F3000LFP. Ensure the solar panel is placed in direct sunlight for optimal charging efficiency. The F3000LFP can handle a solar input of up to 1600W.

Image: The Pecron F3000LFP connected to a solar panel in an outdoor setting, illustrating solar charging capability.

6. Instrucións de funcionamento

6.1 Acendido/Apagado

Manteña premido o botón de acendido principal durante uns segundos para acender ou apagar a unidade. A pantalla iluminarase ao activala.

6.2 Uso de saídas de CA

Press the 'AC' button to activate the AC output ports. Plug your AC-powered devices into the available outlets. The F3000LFP provides a 3600W pure sine wave output, suitable for large appliances like air conditioners and cutting machines.

6.3 Uso das saídas de CC e USB

Press the 'DC' button to activate the DC and USB output ports. Connect your USB-powered devices (laptops, drones, phones) to the USB-A or USB-C ports. Use the car charging port or DC5525 ports for compatible DC devices.

Image: The Pecron F3000LFP highlighting its 30A output and multiple DC and USB ports for various devices.

6.4 Función de sistema de alimentación ininterrompida (SAI)

The F3000LFP features an 8-20ms grade UPS function, providing seamless power during outages. Connect critical devices like CPAP machines or computers to the AC outlets while the power station is connected to grid power. In case of a power failure, the unit will automatically switch to battery power.

Image: The Pecron F3000LFP in a home setting, illustrating its use for CPAP and other home appliances during power outages.

6.5 Control de aplicacións

Monitor power consumption, remotely start/stop devices, and customize charging/discharging strategies via the dedicated mobile app. This feature enhances power usage efficiency by up to 30%.

Image: A smartphone displaying the Pecron app interface, controlling the F3000LFP power station.

7. Métodos de carga

The Pecron F3000LFP supports multiple charging methods:

• Carga de CA: Connect to a standard wall outlet using the provided AC charging cable. Supports 1800W fast charging.
• Carga do coche: Use a 500W smart car charger (not included) to charge the unit from your vehicle's 12V outlet.
• Carga solar: Connect compatible solar panels (up to 1600W max input) to recharge the power station using sunlight.

Image: A visual guide to selecting suitable solar panels for pairing with the F3000LFP, including options for 200W and 300W panels, and expansion with an EP3000-48V extra battery.

8. Mantemento

To ensure the longevity and optimal performance of your Pecron F3000LFP, follow these maintenance guidelines:

• Almacenamento: Garde a unidade nun lugar fresco e seco, lonxe da luz solar directa e de temperaturas extremas.
• Cargando: Fully charge the unit at least once every 3-6 months to maintain battery health, even if not in use.
• Limpeza: Usa un pano seco e suave para limpar o exterior da unidade. Non empregues produtos químicos agresivos nin materiais abrasivos.
• Duración da batería: The LiFePO4 battery retains 80% capacity after over 3,500 cycles, providing long-term electrical support.

Imaxe: Un estilo de raios X view of the Pecron F3000LFP, highlighting its internal LiFePO4 battery cells and various output ports.

9 Solución de problemas

If you encounter issues with your Pecron F3000LFP, refer to the following common problems and solutions:

• A unidade non se acende: Asegúrate de que a batería estea cargada. Se non, conéctaa a unha toma de corrente alterna para cargala.
• Sen saída dos portos: Verify that the respective AC or DC output buttons are activated. Check if the device connected requires more power than the port can supply.
• Aviso de sobrecarga: If an overload warning appears on the display, disconnect some devices to reduce the load. The unit will automatically reset after a short period.
• Solar Charging Not Working: Ensure solar panels are in direct sunlight and properly connected. Check for any obstructions or damage to the panels or cables.

For further assistance, please contact Pecron customer support.

10. Especificacións

Detailed technical specifications for the Pecron F3000LFP Portable Power Station:

Image: Diagram illustrating the dimensions of the Pecron F3000LFP power station and its optional extra battery.

11. Garantía e soporte

The Pecron F3000LFP comes with a 2+3 year warranty. For warranty claims, technical support, or any inquiries, please contact Pecron customer service through their official websitio web ou o vendedor onde se comprou o produto.
