ABBIDOT AB-T70 Dog Training Collar User Manual

1. Introdución

This manual provides instructions for the ABBIDOT AB-T70 Dog Training Collar. This system is designed to assist in training dogs weighing 5 to 120 lbs, offering a range of up to 4500 feet. It features six training modes including beep, vibration, and static stimulation, along with an enhanced night light and IPX7 waterproof rating for the collar.

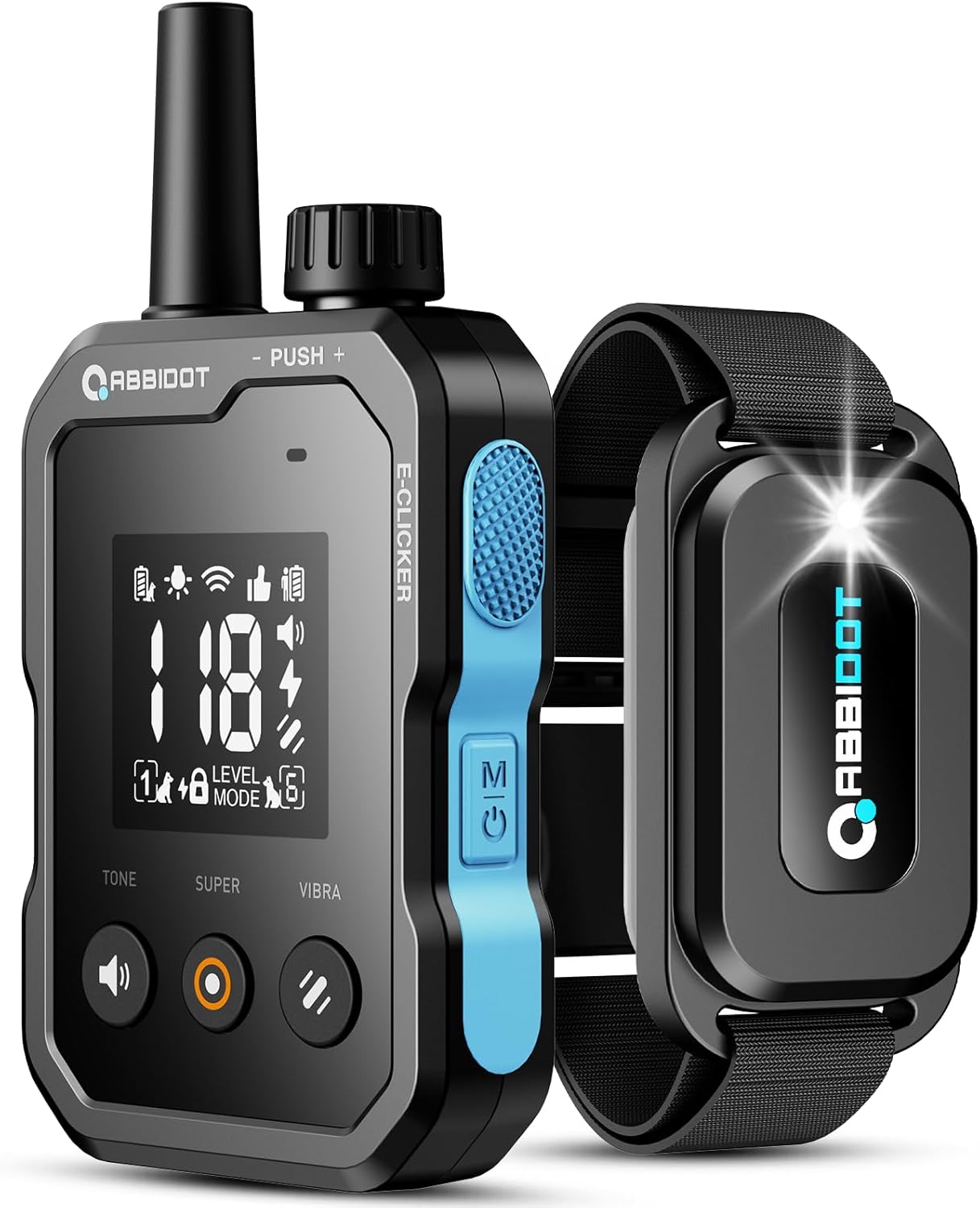

Image: The ABBIDOT AB-T70 remote control and collar receiver, showcasino seu deseño e compoñentes.

2. Información de seguridade

Please read all safety and product information before using your ABBIDOT training collar. Failure to follow these instructions could result in injury to your dog or damage to the product.

• Non apto para cans agresivos: Do not use this product on aggressive dogs. If your dog is aggressive, consult a professional trainer.
• Irritación cutánea: Prolonged wear or improper fit can cause skin irritation. Regularly check your dog's neck for signs of redness or sores.
• Axuste do colo: Ensure the collar fits snugly but not too tightly. You should be able to fit two fingers comfortably between the collar and your dog's neck.
• Supervisión: Supervisa sempre o teu can durante as sesións de adestramento.
• Exposición á auga: While the collar is IPX7 waterproof, it is recommended to keep the collar as dry as possible to maintain your dog's comfort and skin health, especially after water activities.
• Nenos: Keep the training system out of reach of children.

3. Contido do paquete

The ABBIDOT AB-T70 Dog Training Collar package includes the following items:

Image: All components included in the ABBIDOT AB-T70 Dog Training Collar package.

• Mando a distancia T70
• T70 Collar Receiver with Strap
• Manual de usuario (este documento)
• Dog Training Booklet
• Cable de carga tipo C
• Acollador
• Ferramenta de proba de luz
• Silicone Caps (4x)
• Contact Points (4x)
• Metal Extension Contact (optional, for long-haired dogs)

4. Configuración e axuste

4.1 Carga dos dispositivos

Before first use, fully charge both the remote control and the collar receiver. Use the provided Type-C charging cable. The remote lasts up to 55 days, and the collar receiver lasts up to 45 days on a full charge.

4.2 Attaching Contact Points (Optional)

The collar receiver comes with standard contact points. For dogs with thicker coats, you may need to attach the longer metal extension contacts to ensure proper contact for static stimulation. If you do not intend to use the static stimulation function, these accessories are not required.

4.3 Axuste do colar

Proper fit of the collar is essential for effective training and your dog's comfort. The collar is suitable for dogs with neck sizes ranging from 6 to 27 inches and weighing between 5 and 120 pounds.

1. Place the receiver on your dog's neck, ensuring the contact points (if installed) are positioned beneath the neck.
2. Adjust the strap so it is snug but not tight. You should be able to fit two fingers comfortably between the collar and your dog's neck.
3. Trim any excess strap length if necessary, ensuring the end is secured.

Image: Visual guide for adjusting the collar strap to fit different dog sizes.

4.4 Pairing the Remote and Receiver

The remote and receiver are typically pre-paired. If re-pairing is needed:

1. Turn on the remote and the receiver.
2. Prema e manteña premido o botón de acendido do receptor ata que o indicador luminoso parpadee rapidamente.
3. On the remote, select a channel (if applicable) and press any training button (e.g., Beep or Vibration). The receiver light will become solid, indicating successful pairing.

5. Operating the Training Collar

The ABBIDOT AB-T70 offers six training modes and a user-friendly display for easy control.

5.1 Control remotoview

Image: The remote control's oversized display, showing various indicators and settings for clear visibility.

The remote features an oversized display for clear visibility of settings and modes. Buttons are intuitively placed for quick access to training functions.

5.2 Modos de adestramento

The system includes six distinct training modes:

• Beep (Audible Tone): Three distinct audible tones, each with 9 adjustable intensity levels. Used for attention-getting or as a warning.
• Vibración: 36 adjustable intensity levels. Provides a tactile cue without static.
• Estimulación estática: 118 adjustable intensity levels. Delivers a safe, momentary static pulse. Use the lowest effective level.
• Modo personalizado: Allows for personalized settings combining tone and vibration.

Image: Detail of the remote control showing buttons for Tone, Super (Custom), and Vibra modes, and the static session lock/unlock feature.

5.3 Static Session Lock/Unlock

To prevent accidental static stimulation, the remote features a lock mechanism. Push down the knob on the remote to lock/unlock the static session. Rotate the knob to adjust the static level when unlocked.

Image: Illustration of the remote control's push-down knob for locking/unlocking static stimulation and rotating for level adjustment.

5.4 Enhanced Night Light

The collar receiver includes a multi-mode LED night light with three adjustable lighting options: Flashlight, Slow Flash, and Explosive Flash. This feature enhances your dog's visibility in low-light conditions, aiding in tracking during evening walks or nighttime outdoor activities.

Image: A dog wearing the ABBIDOT collar in a dark environment, demonstrating the visibility provided by the anti-lost night light.

5.5 Operating Range and Multi-Dog Support

The system offers an extended control range of up to 4500 feet, allowing for training in various environments. The remote control can manage up to 6 dogs simultaneously, each on a separate channel.

Image: An illustration showing the remote control's 4500-foot range and its ability to control multiple dogs.

6. Mantemento

6.1 Limpeza

Wipe the remote control and the receiver with a damp cloth as needed. Avoid using harsh chemicals or abrasive cleaners.

6.2 Resistencia á auga

The collar receiver is IPX7 waterproof, meaning it can withstand immersion in water up to 1 meter for 30 minutes. The remote control is IPX5 water-resistant, protecting against splashes but not immersion. Always ensure the charging port covers are securely closed.

Image: A dog splashing in water, illustrating the IPX7 waterproof rating of the collar and IPX5 water resistance of the remote.

6.3 Coidado coa batería

To maximize battery life, avoid fully discharging the devices frequently. Charge them when the battery indicator is low. Store in a cool, dry place when not in use for extended periods.

7 Solución de problemas

8. Especificacións

9. Garantía e soporte

The ABBIDOT AB-T70 Dog Training Collar comes with a 1 ano de garantía desde a data de compra.

For technical support, warranty claims, or any questions regarding your product, please contact ABBIDOT customer service:

• Correo electrónico: Support@abbidot.com

Image: ABBIDOT customer support contact information.

Image: Information regarding the 1-year warranty provided by ABBIDOT.
