VEVOR 15000 Lumen Three-Head LED Work Light with Tripod Stand

Introdución

Thank you for choosing the VEVOR 15000 Lumen Three-Head LED Work Light. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your work light. Please read this manual thoroughly before use and retain it for future reference.

Instrucións de seguridade

• Seguridade eléctrica: Asegúrese de que a fonte de enerxía coincide co voltage requirements of the light. Do not operate with damaged cords or plugs. Always unplug the light before cleaning or maintenance.
• Colocación: Position the tripod on a stable, level surface to prevent tipping. Avoid placing the light near flammable materials.
• Calor: Although LED lights generate less heat than traditional halogen, the light heads can still become warm during operation. Avoid touching the light heads directly when in use.
• Resistencia á auga: This product is IP65 rated for water and dust resistance, suitable for outdoor use in various weather conditions. However, avoid submerging the unit in water.
• Nenos e animais: Manteña a luz de traballo fóra do alcance dos nenos e das mascotas.
• Uso previsto: Use this product only for its intended purpose as a work light. Do not modify the unit.

Contido do paquete

Comprobe que todos os elementos estean presentes ao desembalar:

• 1 x Three-Head LED Work Light Assembly
• 1 x soporte para trípode
• 1 x Manual de usuario (este documento)
• 1 x 35mm Bolt
• Pernos de 4 x 25 mm
• 1 x chave hexagonal

Produto rematadoview

The VEVOR LED Work Light features three independently adjustable light heads mounted on a height-adjustable tripod stand, providing versatile illumination for various tasks.

Image: The VEVOR 15000 Lumen Three-Head LED Work Light fully assembled on its tripod stand.

Características principais:

• Alto Brillo: 15,000 lumens output for wide area illumination.
• Temperatura de cor axustable: 6000K-6500K for clear, bright white light.
• Independent Light Heads: Each of the three light heads can be individually switched and adjusted for angle.
• Trípode axustable en altura: Extends from 43.31 inches (110 cm) to 70.87 inches (180 cm).
• Construción duradeira: IP65 waterproof and dustproof rating for outdoor use.
• Cable de alimentación longo: 10.83 ft (3.3 m) power cord for extended reach.

Image: Illustration showing the 15,000 lumens brightness and 6000-6500K adjustable color temperature of the VEVOR LED Work Light.

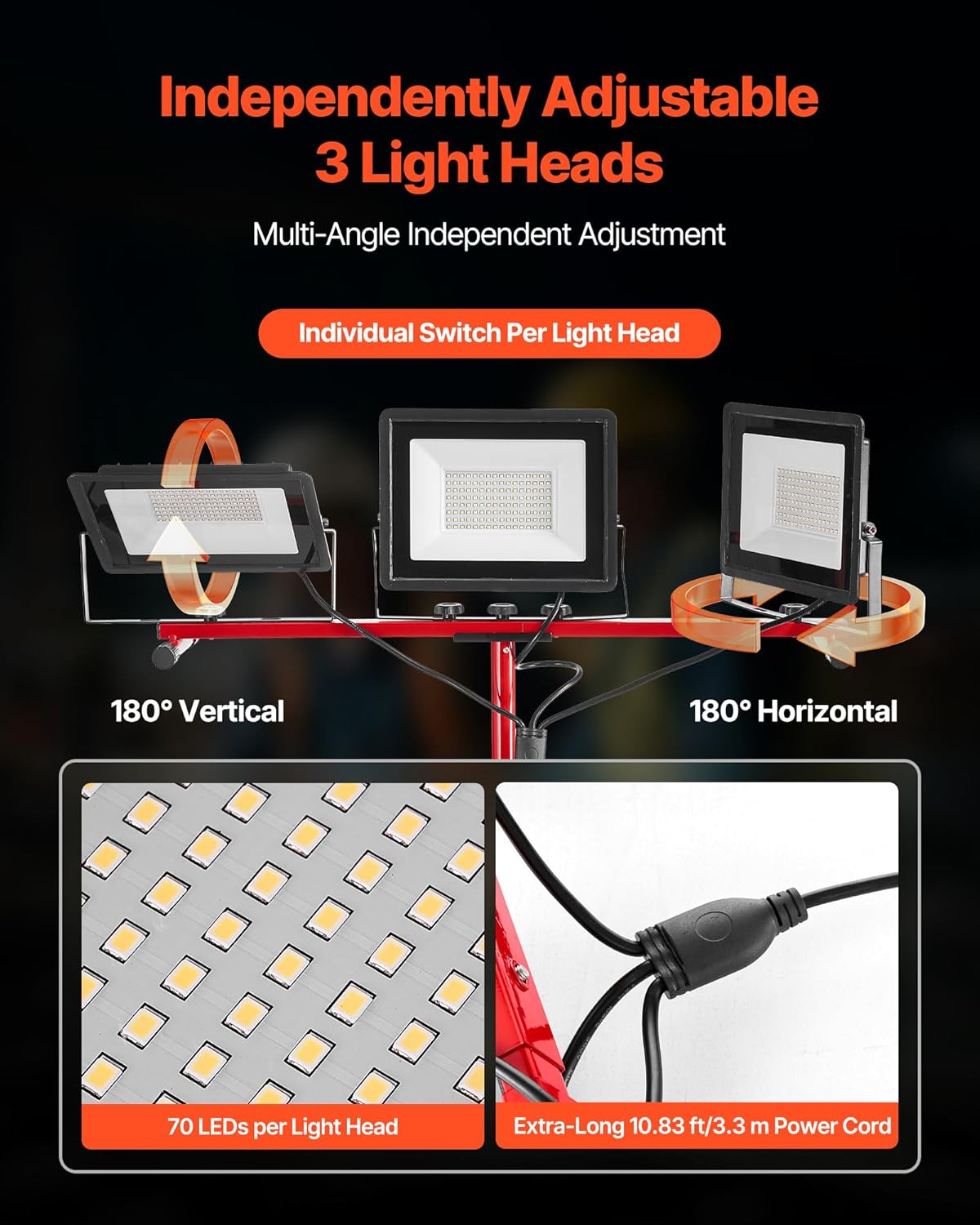

Image: Diagram illustrating the multi-angle independent adjustment of the three light heads (180° vertical and horizontal), showing 70 LEDs per light head and the extra-long 10.83 ft power cord.

Image: Illustration of the height-adjustable tripod stand, demonstrating its stable design and showing the adjustment range from 43.31 inches (minimum) to 70.87 inches (maximum).

Image: The VEVOR LED Work Light demonstrating its rugged construction and IP65 waterproof and dustproof rating in a rainy outdoor environment.

Instrucións de configuración

1. Desempaquetar compoñentes: Retire con coidado todas as pezas da embalaxe e verifique coa lista de "Contido da embalaxe".
2. Montar o soporte do trípode: Extend the legs of the tripod stand until they are fully spread and stable. Secure any locking mechanisms on the tripod legs.
3. Attach Light Bar to Tripod: Place the light bar assembly onto the top of the tripod stand. Align the mounting holes. Use the provided 35mm bolt and hex wrench to secure the light bar to the tripod.
4. Cabezas de luz seguras: The three light heads are pre-attached to the light bar. Ensure they are securely fastened.
5. Axustar a altura: Afrouxa o axuste de altura clamps on the tripod pole, extend the pole to the desired height (between 43.31 in and 70.87 in), and securely tighten the clamps.
6. Position Light Heads: Adjust the angle of each light head vertically and horizontally as needed. The individual switches are located on each light head.
7. Conectar enerxía: Plug the power cord into a suitable electrical outlet. Ensure the outlet meets the product's power requirements.

Imaxe: Unha completa view of the VEVOR LED Work Light, illustrating the assembled tripod stand and the three light heads with their wiring.

Instrucións de funcionamento

1. Encendido/apagado: Once plugged in, use the individual switch located on each light head to turn it on or off.
2. Axustar o ángulo de luz: Each light head can be independently rotated 180 degrees vertically and horizontally to direct light precisely where needed.
3. Axustar a altura: To change the height of the light, loosen the clamps on the tripod pole, adjust to the desired height, and re-tighten the clamps firmemente.
4. Axuste de brillo: The light provides a fixed brightness of 15,000 lumens. There is no adjustable brightness feature on this model.

Imaxe: Examples of the VEVOR LED Work Light in use, demonstrating its versatility for both indoor tasks like auto repair and outdoor applications such as construction.

Mantemento

• Limpeza: Disconnect the power before cleaning. Wipe the light heads and stand with a soft, damp pano. Non use produtos de limpeza ou disolventes abrasivos.
• Almacenamento: When not in use, fold the tripod stand and store the work light in a dry, cool place away from direct sunlight.
• Inspección do cable: Regularly inspect the power cord for any signs of damage, fraying, or cuts. If damaged, discontinue use and replace the cord by a qualified technician.
• Fixadores: Comprobe periodicamente todos os parafusos e as bridasamps para garantir que estean axustados e seguros.

Resolución de problemas

Especificacións

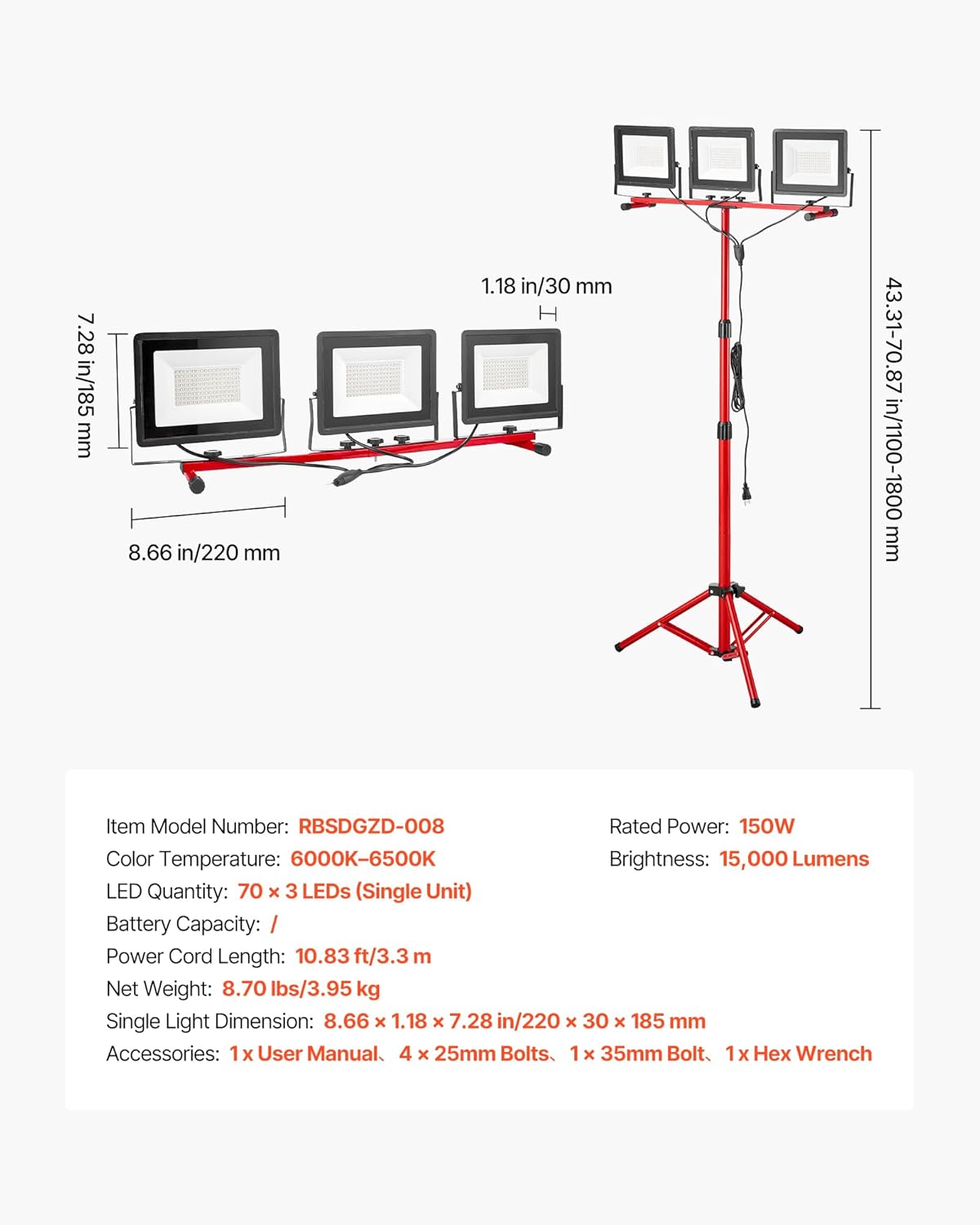

Image: Diagram illustrating the dimensions and key specifications of the VEVOR LED Work Light, including item model number, rated power, brightness, color temperature, LED quantity, power cord length, net weight, and single light dimensions.

Garantía e Soporte

This VEVOR product comes with a 2-year warranty from the date of purchase. For warranty claims, technical support, or replacement parts, please contact VEVOR customer service. Keep your purchase receipt as proof of purchase.

Para obter máis información, visita a tenda oficial de VEVOR: Tenda VEVOR en Amazon
