HOMCOM 3-Door Armoire Wardrobe Closet with 2 Drawers (Model 83D-057V80) User Manual

1. Introdución

Thank you for choosing the HOMCOM 3-Door Armoire Wardrobe Closet. This manual provides essential information for the safe assembly, proper use, and effective maintenance of your new furniture. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

Figura 1.1: Fronte view of the HOMCOM 3-Door Armoire Wardrobe Closet.

2. Información de seguridade

Importante: Always follow these safety guidelines to prevent injury or damage to the product.

• Correas antivuelco: Anti-tipping straps must be used to secure the cabinet to the wall. This prevents accidental tipping, which can cause serious injury.
• Ensure all screws and fasteners are securely tightened during assembly. Periodically check and re-tighten as necessary.
• Do not overload shelves or hanging rods. Refer to the 'Specifications' section for weight capacities.
• Manteña as pezas pequenas e os accesorios de montaxe fóra do alcance dos nenos durante a montaxe.
• Monte a unidade sobre unha superficie suave e limpa para evitar rabuñaduras.

3. Contido do paquete

Verifique que estean presentes todos os compoñentes antes de comezar a montaxe. Se falta algunha peza ou está danada, póñase en contacto co servizo de atención ao cliente.

• Wardrobe panels (sides, top, bottom, back, doors, drawer fronts)
• Vara colgante
• Shelves (4 total)
• Drawers (2 total)
• Hardware pack (screws, dowels, hinges, drawer slides, silver knobs, lock and keys, anti-tipping straps)
• Manual de usuario (este documento)

Figure 3.1: The product is typically shipped in two packages.

4. Instrucións de montaxe

Assembly is required for this product. It is recommended to have two people for assembly. Follow the detailed instructions provided in the included assembly guide. Ensure all parts are correctly oriented before fastening.

Pasos clave de montaxe:

1. Desembalar e identificar as pezas: Lay out all components and hardware. Compare with the parts list to ensure everything is present.
2. Montar a estrutura principal: Connect the side panels to the base and top panels using the provided fasteners.
3. Install Shelves and Hanging Rod: Insert the shelves into the designated slots and secure the hanging rod in the central compartment.
4. Montar e instalar caixóns: Construct the two drawers and install the drawer slides. Mount the drawers into their respective compartments. Note the lockable drawer feature.
5. Fixar portas: Secure the three doors using the adjustable hinges. Ensure proper alignment for smooth opening and closing.
6. Install Anti-Tipping Straps: Crucially, attach the anti-tipping straps to the top rear of the wardrobe and secure them to a wall stud.

Figura 4.1: Máisview of wardrobe dimensions and internal layout.

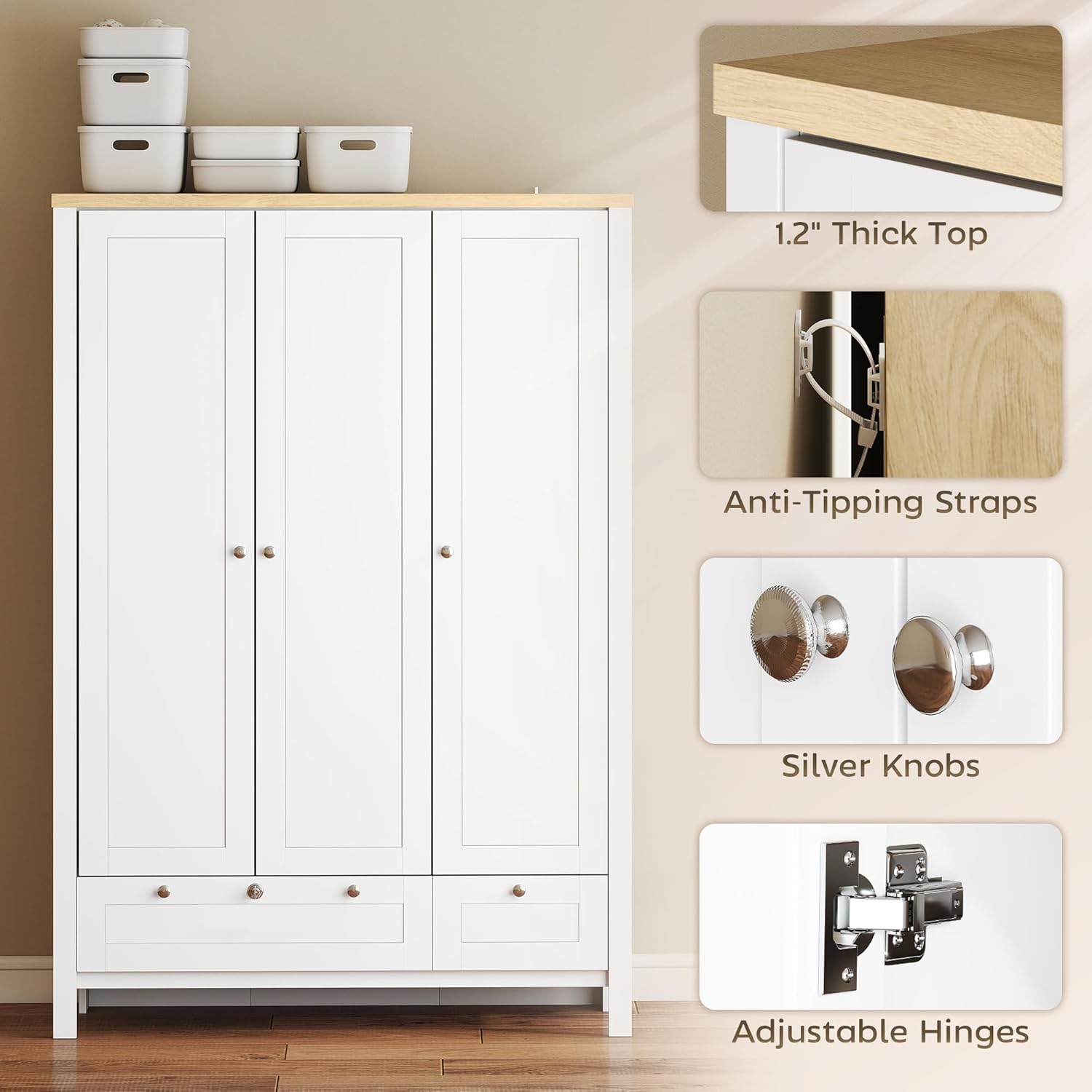

Figure 4.2: Detailed features including the thick top, anti-tipping straps, knobs, and hinges.

5. Uso

5.1 Capacidade de almacenamento

This wardrobe offers versatile storage solutions:

• Espazo para colgar: The central double-door section provides a generous 28.3" x 17.7" x 53.7" area for hanging coats, suits, and dresses. The hanging rod supports up to 33 lbs.
• Estantes laterais: The side cabinet features 3 tiers, ideal for folded clothes, bags, or storage boxes.
• Caixóns inferiores: Two bottom drawers are perfect for smaller items like socks, underwear, or accessories.

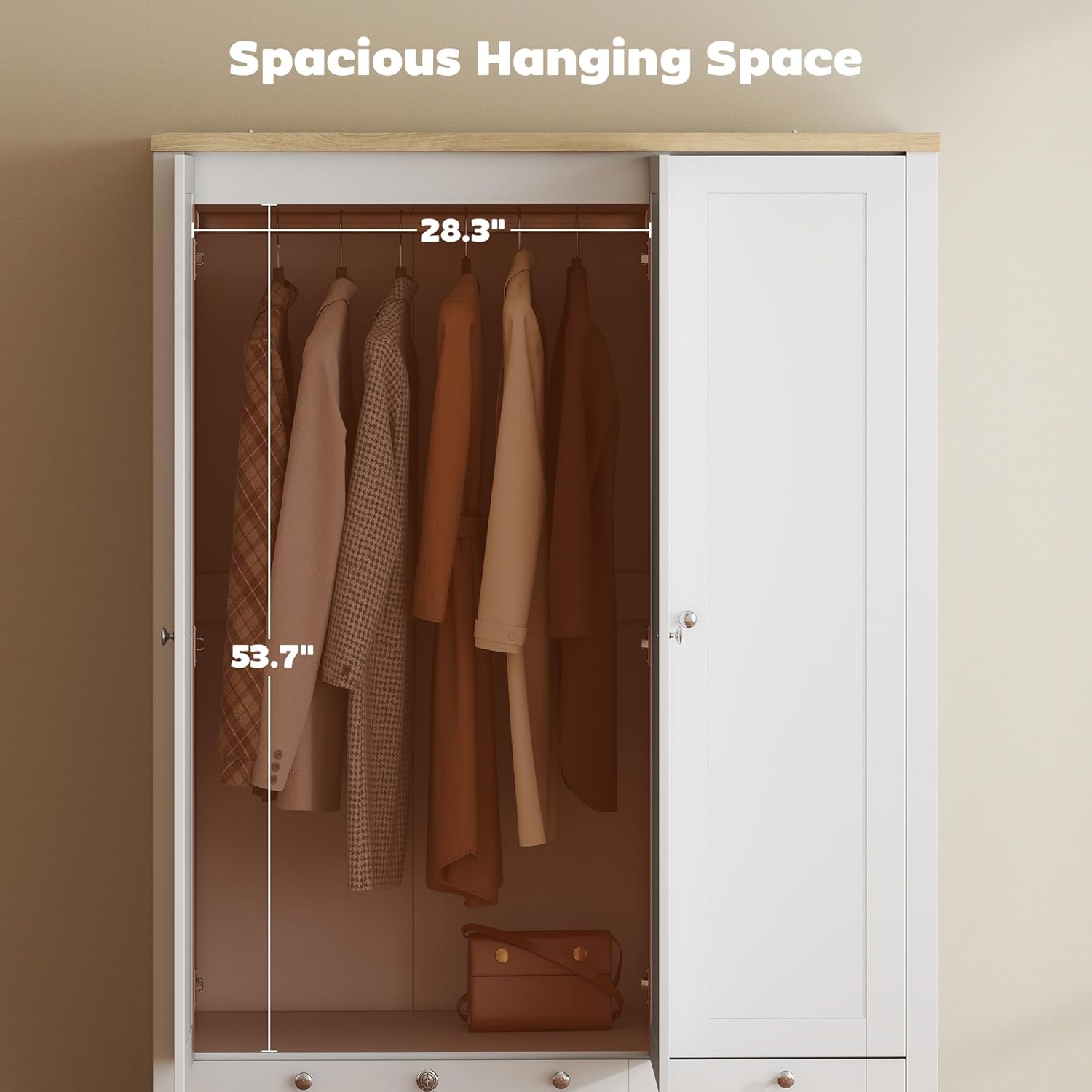

Figure 5.1: Spacious hanging area for garments.

Figura 5.2: Máisview of sufficient storage space for various clothing items.

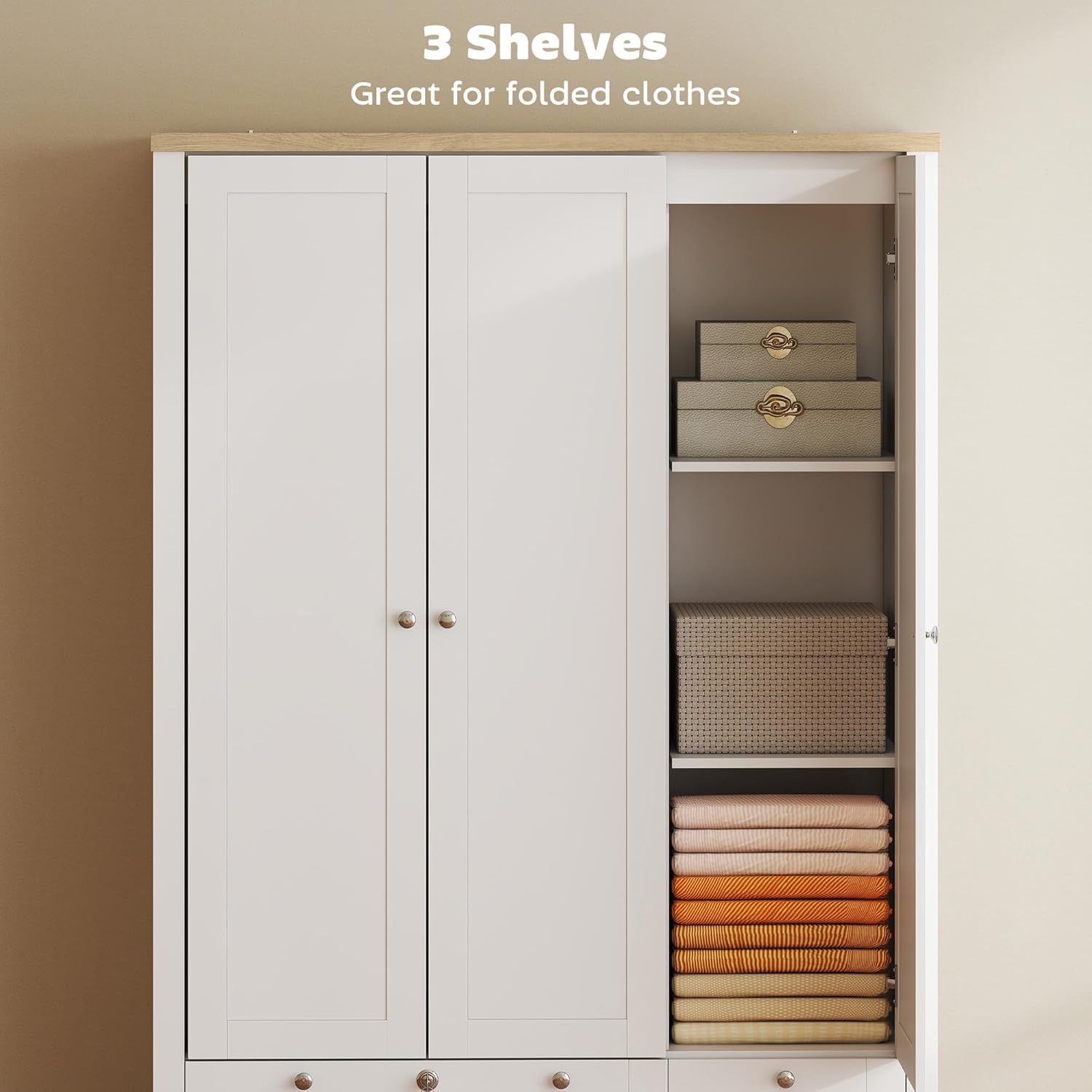

Figure 5.3: Three shelves for folded items.

5.2 Lockable Drawer

One of the large bottom drawers is equipped with a lock and two keys. This feature allows for secure storage of personal items, accessories, or important documents, ensuring privacy and protection.

Figure 5.4: The lockable drawer for secure storage.

6. Mantemento

Para garantir a lonxevidade e o aspecto do teu armario, segue estas pautas de mantemento:

• Limpeza: Limpe as superficies cun suave, damp pano. Evite produtos químicos agresivos ou produtos de limpeza abrasivos, que poden danar o acabado.
• Desempolvado: Limpar o po regularmente cun pano suave e seco.
• Verificación de hardware: Periodically check all screws, bolts, and hinges to ensure they are tight. Re-tighten as needed to maintain stability.
• Evite a luz solar directa: A exposición prolongada á luz solar directa pode causar esvaecemento ou decoloración.
• Control de humidade: Avoid placing the wardrobe in areas with high humidity or direct contact with water.

7 Solución de problemas

If you encounter issues with your wardrobe, consider the following common solutions:

• Portas sen aliñamento: Check if the wardrobe is on a level surface. Adjust the hinges if necessary (refer to hinge adjustment instructions in your assembly guide). Ensure all frame connections are tight.
• Caixóns pegados: Verify that drawer slides are correctly installed and free of obstructions. Ensure the drawer is not overloaded.
• Tambaleamento: Confirm that all fasteners are securely tightened. Ensure the anti-tipping straps are properly installed and secured to the wall.
• Pezas que faltan: If parts were missing upon delivery, contact HOMCOM customer support with your product model number and a description of the missing items.

8. Especificacións

9. Produto rematadoview Vídeo

Mira este vídeo para obter unha visión xeralview of the HOMCOM 3-Door Armoire Wardrobe Closet's features and design.

10. Garantía e soporte

For warranty information, replacement parts, or customer support, please refer to the contact details provided with your purchase documentation or visit the official HOMCOM websitio. Garda o comprobante de compra para reclamacións de garantía.
