1. Introdución
Thank you for choosing the Baseus Bass BP1 NC Hybrid Active Noise Cancelling Wireless Earbuds. This manual provides essential information for setting up, operating, and maintaining your earbuds to ensure optimal performance and longevity. Please read it thoroughly before use.
2. Que hai na caixa
Verifica que todos os elementos estean presentes no teu paquete:
- Baseus Bass BP1 NC Wireless Earbuds
- Estuche de carga sen fíos
- Almofadiñas (tallas S/M/L)
- Manual de usuario
Image: Contents of the Baseus Bass BP1 NC Earbuds package.
3. Produto rematadoview
Familiarize yourself with the components of your Baseus Bass BP1 NC earbuds and charging case.
Image: Baseus Bass BP1 NC Earbuds and Charging Case.
Imaxe: Detallada view of a single earbud.
4. Configuración
4.1 Carga dos auriculares e da funda
Before first use, fully charge the earbuds and charging case. Place the earbuds into the charging case. Connect the charging case to a power source using a USB-C cable. The indicator lights on the case will show the charging status.
Unha carga de 10 minutos proporciona aproximadamente 2 horas de reprodución.
Imaxe: Duración da batería e información sobre a carga.
4.2 Emparejamento Bluetooth
- Abre a caixa de carga. Os auriculares entrarán automaticamente no modo de emparellamento, o que se indicará cunha luz intermitente.
- No teu dispositivo (teléfono intelixente, tableta, etc.), activa o Bluetooth.
- Busca "Baseus Bass BP1 NC" in the list of available Bluetooth devices and select it to connect.
- Once connected, the indicator light on the earbuds will turn off or show a steady light, depending on the model.
The earbuds feature Bluetooth 6.0 for lower latency, more stable connectivity, and increased transmission range.
Image: Bluetooth 6.0 technology overview.
4.3 Colocación dos auriculares
For optimal sound quality and noise cancellation, ensure a proper fit. Choose the eartips that provide a snug seal in your ear canal. Insert the earbuds gently and twist them slightly until they feel secure and comfortable.
Image: Earbuds properly fitted in ear.
5. Instrucións de funcionamento
5.1 Encendido/apagado
- Encendido: Abre o estuche de carga e os auriculares acenderanse automaticamente.
- Apagado: Volve colocar os auriculares na caixa de carga e pecha a tapa. Apagaranse automaticamente e comezarán a cargar.
5.2 Controis táctiles
The Baseus Bass BP1 NC earbuds feature intuitive touch controls on each earbud. The 'Pinch Area' on the stem of the earbud is where touch gestures are registered.
Image: Touch control functions.
| Acción | Función |
|---|---|
| Dobre toque (x2) | Reproducir/Pausar música; Responder/Finalizar chamadas |
| Triplo toque (x3) | Play Previous Track (Left earbud); Play Next Track (Right earbud) |
| Mantén premido (2 s) | Reject calls; Switch Noise Reduction / Transparency Mode |
5.3 Cancelación activa de ruído (ANC) e modo de transparencia
The earbuds feature Hybrid ANC technology, reducing external noise by up to -43dB. You can switch between ANC On, ANC Off, and Transparency modes by pressing and holding the touch area for 2 seconds.
- ANC activado: Bloquea o ruído ambiental para unha experiencia auditiva envolvente.
- ANC desactivado: Standard audio mode without noise cancellation.
- Modo de transparencia: Permite escoitar o que che rodea mentres aínda disfrutas do audio, útil para estar atento en contornas concorridos.
Image: Deep Noise Cancelling feature in action.
5.4 Xestión de chamadas
The 4-Mic AI ENC technology ensures clear calls by isolating your voice from background noise.
Image: 4-Mic AI ENC for clear calls.
5.5 Customizable Audio Performance (EQ)
Utilize the Baseus app to personalize your listening experience with 24 customizable EQ settings. This allows you to tailor the sound profile to your preferences for various music genres or content types.
Image: Baseus app EQ customization interface.
Xogos de baixa latencia 5.6
The earbuds offer a low latency of 58ms, providing a synchronized audio-visual experience ideal for gaming.
Video: Demonstrating the low latency feature for gaming.
6. Mantemento
6.1 Limpeza
- Limpa os auriculares regularmente, especialmente as almofadas e os contactos de carga, cun pano suave, seco e sen fiapos.
- Retire as almofadas e límpeas con auga e xabón suave se é necesario. Asegúrese de que estean completamente secas antes de volvelas colocar.
- Non use produtos de limpeza ou disolventes abrasivos.
6.2 Almacenamento
Cando non os uses, garda sempre os auriculares na súa funda de carga para protexelos do po e dos danos, e para mantelos cargados.
6.3 Resistencia á auga
The earbuds are IP55 water-resistant, protecting them from sweat, splashes, and light rain. Do not submerge them in water or expose them to strong jets of water.
Image: IP55 Water & Dust Resistant feature.
7 Solución de problemas
Se tes algún problema, consulta os seguintes problemas e solucións comúns:
| Problema | Posible Solución |
|---|---|
| Os auriculares non se emparejan | Ensure earbuds are charged. Turn off and on Bluetooth on your device. Place earbuds back in case, close, then reopen to re-enter pairing mode. |
| Non hai son dun auricular | Check if both earbuds are charged. Try resetting the earbuds (refer to manufacturer's specific reset instructions if available). Re-pair with your device. |
| Mala calidade de son / Graves débiles | Ensure eartips provide a snug seal. Try different sized eartips. Check EQ settings in the Baseus app. |
| ANC non eficaz | Ensure earbuds are properly seated in your ears. Verify ANC mode is active via touch control or the Baseus app. |
| Os auriculares non se cargan | Clean charging contacts on both earbuds and case. Ensure charging cable is securely connected and power source is active. |
8. Especificacións
Detailed technical specifications for the Baseus Bass BP1 NC Earbuds:
- Nome do modelo: Baseus Bass BP1 NC
- Control de ruído: Adaptive Noise Cancellation (Hybrid ANC up to -43dB)
- Tipo de controlador de audio: Driver dinámico

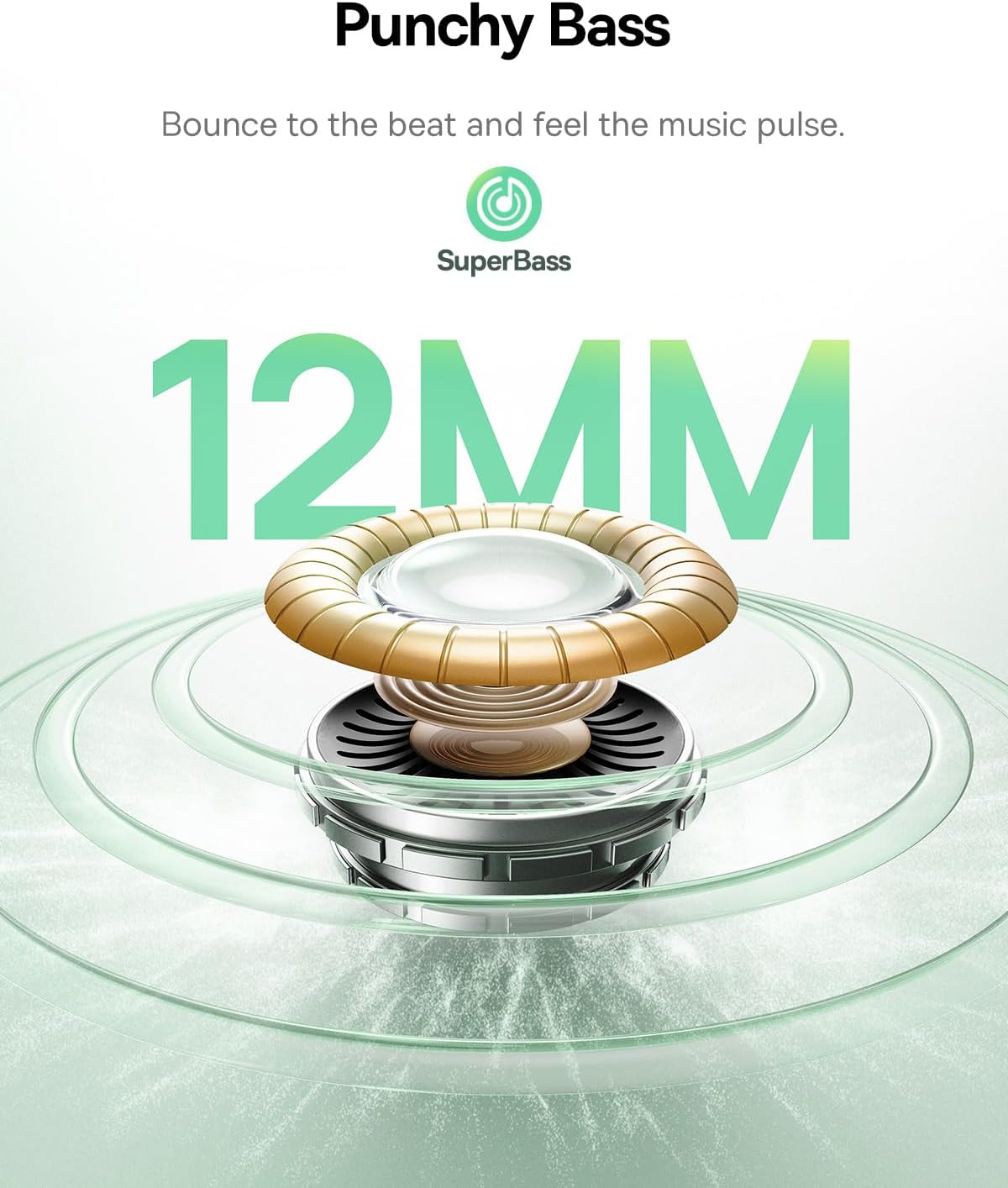

- Tamaño do controlador de audio: 12 mm
- Resposta en frecuencia: 20 kHz
- Impedancia: 16 ohmios
- Tecnoloxía de conectividade: Sen fíos
- Tecnoloxía de comunicación sen fíos: Bluetooth
- Versión Bluetooth: 6.0
- Alcance Bluetooth: 10 metros
- Latencia de audio: 58 milisegundos
- Duración da batería (auriculares): Ata 7 horas (ANC desactivado)
- Total Playtime (with Charging Case): Ata 41 horas (ANC desactivado)
- Charging Time (Rapid Charge): 10 minutos durante 2 horas de xogo
- Nivel de resistencia á auga: IP55 (resistente á auga)
- Tipo de control: Control táctil
- Micrófonos: ENC de IA de 4 micrófonos
- EQ personalizable: 24 configuracións a través da aplicación Baseus
- Material: Acrilonitrilo butadieno estireno (ABS), policarbonato (PC)
- Item Weight (per earbud): 4.1 gramos (aprox. 0.145 onzas)
- Dimensións do produto: 1.2 x 0.8 x 0.9 polgadas
- Dimensións do estuche de transporte: 5.7 x 4.9 x 2.8 centímetros
- UPC: 810196183469
9. Información de seguridade
- Non desmonte nin modifique o produto.
- Manter lonxe de temperaturas extremas, luz solar directa e chamas abertas.
- Avoid exposing the product to water beyond its IP55 rating.
- Non empregues os auriculares a volumes excesivamente altos durante períodos prolongados para evitar danos auditivos.
- Manter fóra do alcance dos nenos e animais.
10. Garantía e soporte
Baseus products are covered by a limited warranty. For specific warranty terms, registration, or technical support, please refer to the warranty card included in your package or visit the official Baseus websitio. Garde o comprobante de compra para reclamacións de garantía.
