AJAZZ AKP03 Macro Keypad Stream Controller User Manual

1. Introdución

The AJAZZ AKP03 Macro Keypad Stream Controller is a versatile device designed to enhance productivity and streamline workflows for gamers, streamers, and professionals. Featuring six programmable keys with LCD displays, three physical knobs, and three toggle switches, it offers extensive customization options for various tasks.

This manual provides detailed instructions for setting up, operating, and maintaining your AKP03 device, ensuring optimal performance and user experience.

2. Características do produto

• Six Programmable Macro Keys: Customizable LCD displays for single or continuous actions.
• Three Physical Knobs: For precise control over various functions.
• Three Toggle Switches: Additional control options.
• Operación cun só clic: Instant execution of macro commands, text input, application launches, and media control.
• Intuitive Driver Software: Drag-and-drop functionality for easy key assignment and property configuration.
• Ampla compatibilidade: Seamless integration with platforms like Streamlabs, Twitch, YouTube, and various software applications on Windows and Mac.
• Removable 40° Stand: Provides an ergonomic viewing angle and stable placement.

Figura 2.1: Máisview of the AJAZZ AKP03 Macro Keypad, highlighting its programmable buttons, toggle switches, and scroll wheels.

3. Contido do paquete

Verifica que todos os elementos estean presentes no teu paquete:

• AJAZZ AKP03 Macro Keypad Stream Controller
• Cable USB-C a USB-A
• Removable 40° Stand
• Manual de usuario (este documento)

4. Configuración

4.1 Conexión física

1. Attach the removable 40° stand to the bottom of the AKP03 for an ergonomic angle, if desired.
2. Connect the provided USB-C cable to the USB-C port on the AKP03.
3. Conecta o extremo USB-A do cable a un porto USB dispoñible do teu ordenador (PC ou Mac).
4. O dispositivo acenderase automaticamente.

Figure 4.1: Attaching the removable 40° stand to the AKP03.

4.2 Instalación de software

To unlock the full customization capabilities of your AKP03, you must install the dedicated driver software.

1. Abre o teu web browser and navigate to the official AJAZZ websitio: www.a-jazz.com.
2. Locate the 'Driver Download' section.
3. Busca 'AKP03' or browse for the corresponding driver for your model.
4. Download the driver software compatible with your operating system (Windows or macOS).
5. Executa o instalador e siga as instrucións en pantalla para completar a instalación.
6. Reinicie o ordenador se se lle solicita.

5. Instrucións de funcionamento

5.1 Customizing Keys and Knobs

The AKP03's driver software provides a user-friendly interface for customization:

1. Launch the 'Stream Dock AJAZZ' software from your desktop or applications folder.
2. The software will display a visual representation of your AKP03.
3. To assign an action, drag and drop a desired function (e.g., launch application, media control, macro command) from the software's library onto one of the six programmable keys.
4. For knobs, select the knob in the software and assign functions such as volume control, scrolling, or zooming.
5. You can configure properties for each assigned action, including specific file camiños, web URLs, or macro sequences.
6. The LCD displays on the keys will update to show the assigned icon or text.

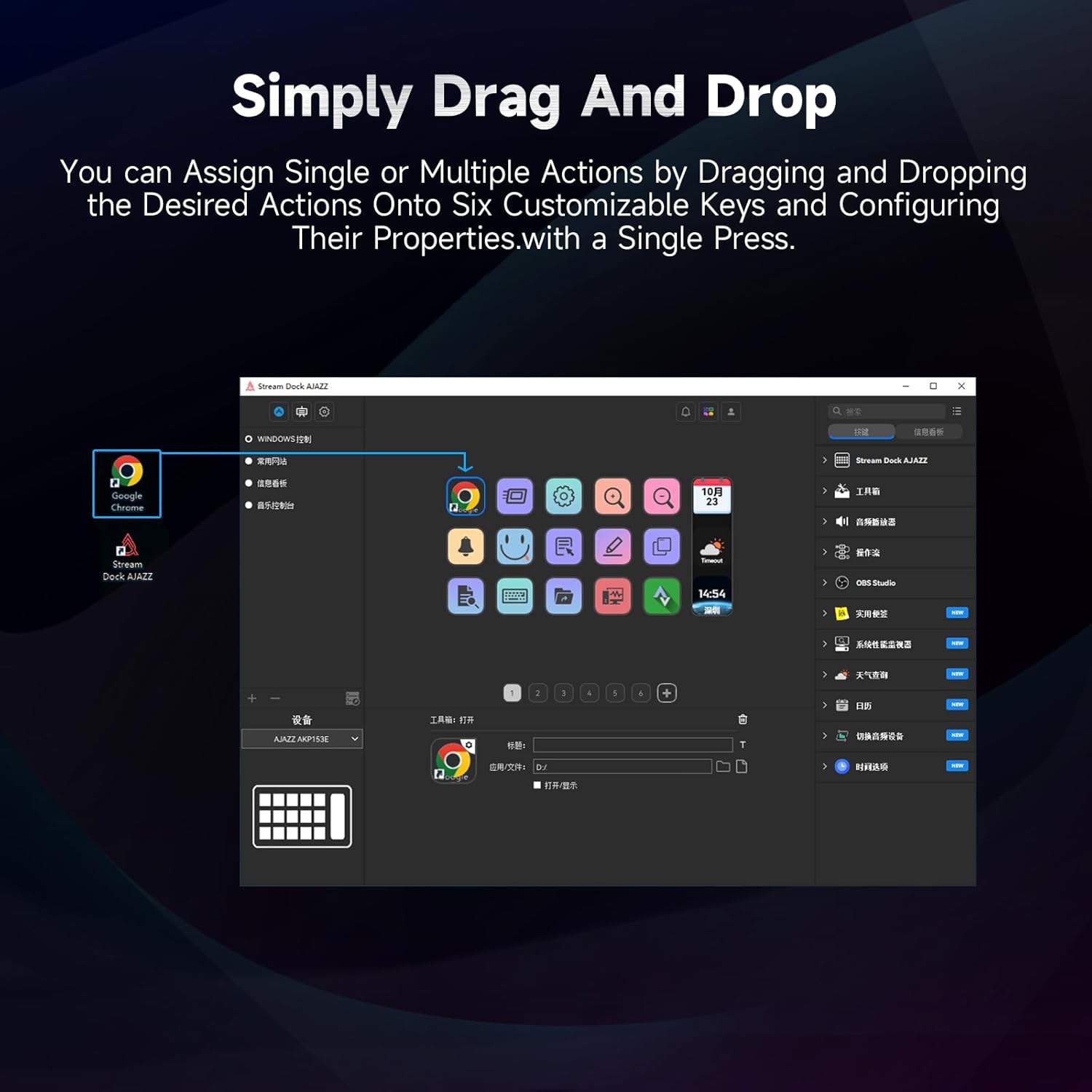

Figure 5.1: Customizing keys using the drag-and-drop interface in the AJAZZ software.

5.2 Using Profiles and Pages

The software supports multiple profiles and pages, allowing you to switch between different sets of key assignments for various applications or tasks.

• Crea un novo profesionalfiles for specific games, editing software, or streaming setups.
• Dentro de cada profile, you can create multiple pages of key assignments, accessible by navigating through the device's buttons or software interface.
• The AKP03 automatically switches to the relevant profile when a linked application is in focus.

6. Mantemento

To ensure the longevity and optimal performance of your AJAZZ AKP03, follow these maintenance guidelines:

• Limpeza: Use a soft, dry cloth to wipe the surface of the device. Avoid abrasive cleaners or solvents.
• Almacenamento: Garde o dispositivo nun lugar fresco e seco, lonxe da luz solar directa e de temperaturas extremas.
• Coidado do cable: Evite dobrar ou retorcer o cable USB excesivamente para evitar danalo.
• Actualizacións de software: Consulta regularmente o AJAZZ websitio para actualizacións de software e firmware para garantir a compatibilidade e o acceso a novas funcións.

7 Solución de problemas

If you encounter issues with your AKP03, refer to the following common troubleshooting steps:

• Dispositivo non recoñecido:
  • Ensure the USB cable is securely connected to both the AKP03 and your computer.
  • Proba a conectarte a un porto USB diferente.
  • Reinicia o teu ordenador.
  • Verify that the driver software is correctly installed and up to date.
• As teclas non responden:
  • Check the software to ensure keys are properly assigned and the correct profile está activo.
  • Ensure the driver software is running in the background.
• Problemas de software:
  • Reinstala o software do controlador.
  • Check for software updates on the AJAZZ websitio.

8. Especificacións

9. Garantía e soporte

9.1 Información da garantía

The AJAZZ AKP03 Macro Keypad Stream Controller comes with a Garantía limitada de 1 anos desde a data de compra. Esta garantía cobre defectos de fabricación e avarías en condicións de uso normal. Non cobre danos causados ​​por mal uso, accidentes, modificacións non autorizadas ou instalación incorrecta.

Conserve o comprobante de compra para reclamacións de garantía.

9.2 Atención ao cliente

For technical assistance, troubleshooting, or warranty inquiries, please contact AJAZZ customer support:

• Websitio: www.a-jazz.com (Refer to the 'Support' or 'Contact Us' section)
• Correo electrónico: [Insert Customer Support Email, if available]
• Teléfono: [Insert Customer Support Phone Number, if available]

Our support team is available to assist you with any questions or concerns regarding your product.
