Black+Decker BXRA2501E Electronic Oil Radiator User Manual

1. Introdución

Thank you for choosing the Black+Decker BXRA2501E Electronic Oil Radiator. This appliance is designed to provide efficient and comfortable heating for your indoor spaces. Featuring 2500W of power, 11 heating elements, a digital display, adjustable thermostat, and a 24-hour timer, this radiator offers precise control and quiet operation. Please read this manual thoroughly before use to ensure safe and optimal performance.

2. Instrucións de seguridade

Siga sempre as precaucións de seguridade básicas ao usar electrodomésticos para reducir o risco de incendio, descarga eléctrica e lesións.

• Lea todas as instrucións antes de usar este radiador.
• Non use este radiador no entorno inmediato dun baño, unha ducha ou unha piscina.
• Do not cover the radiator. Covering the radiator can lead to overheating and fire.
• Keep flammable materials such as furniture, curtains, and other combustible items at least 1 meter (3 feet) from the front and sides of the radiator.
• Ensure the radiator is placed on a stable, level surface to prevent tipping. This model includes anti-tip protection.
• Do not operate any radiator with a damaged cord or plug, or after the radiator malfunctions or has been dropped or damaged in any manner.
• Este aparello non está pensado para o seu uso por persoas (incluídos nenos) con capacidades físicas, sensoriais ou mentais reducidas, ou con falta de experiencia e coñecementos, a menos que teñan supervisión ou instrucións sobre o uso do aparello por unha persoa responsable da súa seguridade.
• Os nenos deben ser supervisados ​​para asegurarse de que non xoguen co aparello.
• Non introduza nin permita que entren obxectos estraños en ningunha abertura de ventilación ou de escape, xa que isto podería provocar unha descarga eléctrica ou un incendio, ou danar o radiador.
• Para evitar un posible incendio, non bloquee de ningún xeito as entradas de aire ou as aberturas de escape. Non o use en superficies brandas, como unha cama, onde se poidan bloquear as aberturas.
• The radiator has hot parts inside. Do not use it in areas where gasoline, paint, or flammable liquids are used or stored.
• Unplug the radiator when not in use.

3. Compoñentes do produto

The Black+Decker BXRA2501E Electronic Oil Radiator comes with the following components:

• Main Radiator Unit with 11 Heating Elements
• Digital Control Panel with Touch Controls
• Control remoto
• Pre-assembled Wheels for Portability
• Power Cord with Cable Housing

Image: The Black+Decker BXRA2501E oil radiator shown with its remote control. The radiator features a black finish, 11 heating elements, and a digital display on the side panel.

4. Configuración

Your Black+Decker BXRA2501E radiator is designed for easy setup. Follow these steps to prepare your unit for use:

1. Unpack the Radiator: Retire con coidado o radiador da súa embalaxe. Garde a embalaxe para o seu almacenamento ou transporte futuros.
2. Position the Radiator: Coloca o radiador sobre unha superficie firme e nivelada. Asegúrate de que haxa polo menos 1 metro (3 pés) de espazo libre arredor do radiador con respecto ás paredes, mobles e outros obxectos para permitir unha correcta circulación da calor e evitar riscos de incendio.
3. Conectar á enerxía: Unwind the power cord from the integrated cable housing. Plug the power cord into a suitable electrical outlet. Ensure the outlet voltage matches the radiator's requirements (220-240V, 50Hz).

Image: A person demonstrating the integrated cable housing on the side of the Black+Decker oil radiator, used for neat storage of the power cord.

5. Instrucións de funcionamento

The BXRA2501E radiator features a digital display with touch controls and a remote control for convenient operation.

5.1 Encendido/apagado

• Usando o panel de control: Preme o Botón de acendido (símbolo: círculo cunha liña vertical) on the digital display to turn the radiator on or off.
• Usando o mando a distancia: Preme o Botón de acendido on the remote control to turn the radiator on or off.

5.2 Axuste da configuración de calor

The radiator offers 3 heat intensity levels.

• Preme o Botón de modo (symbol: three wavy lines) on the control panel or remote control to cycle through the available heat settings (Low, Medium, High). The selected setting will be indicated on the digital display.

5.3 Axustar a temperatura

O termostato axustable permíteche axustar a temperatura ambiente desexada.

• Usa o Up e Abaixo arrows on the control panel or remote control to increase or decrease the target temperature. The digital display will show the set temperature.
• The radiator will automatically turn on or off to maintain the set temperature, ensuring energy efficiency.

Imaxe: Primeiro plano view of the LED touch screen on the Black+Decker oil radiator, displaying the temperature setting and control icons.

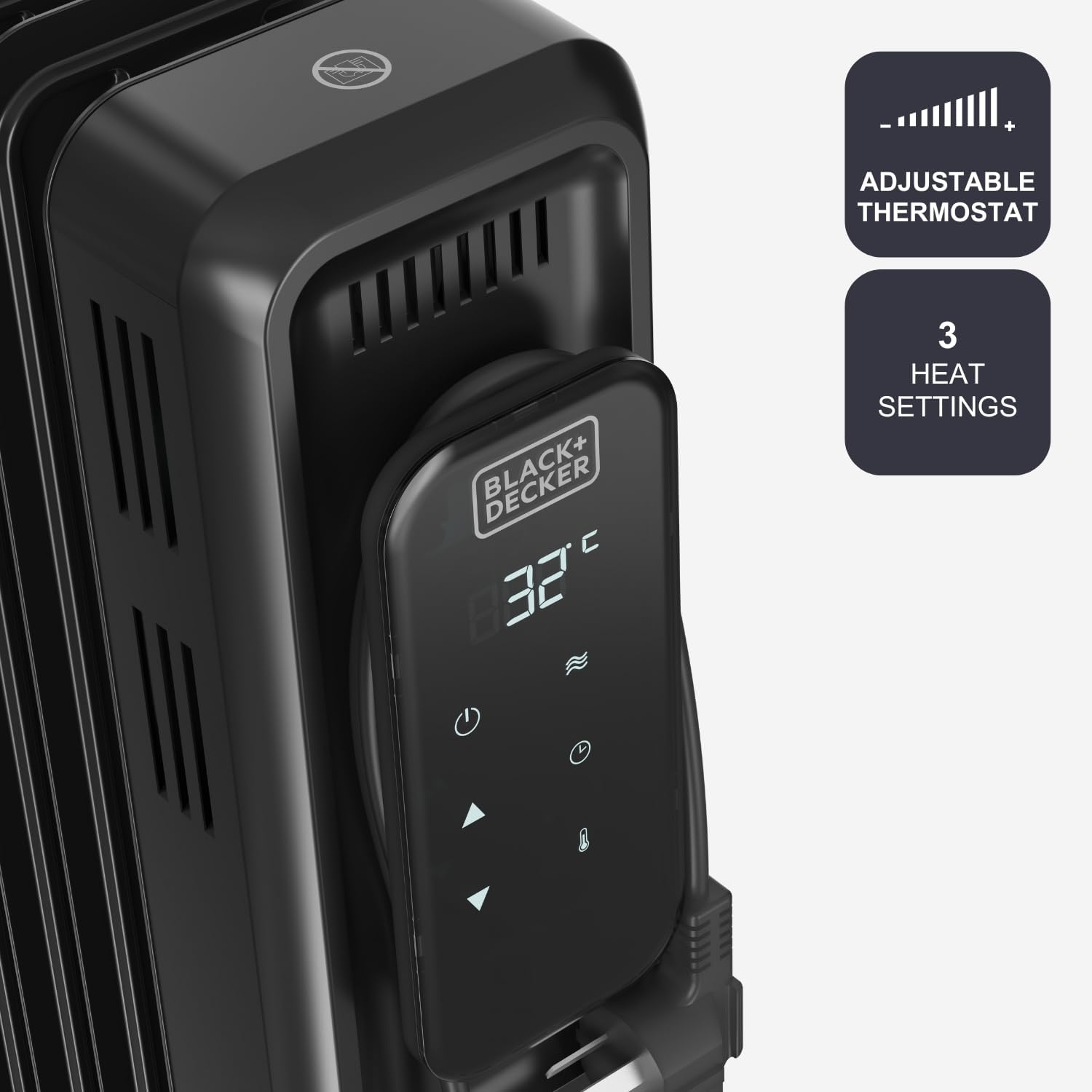

Imaxe: Unha detallada view of the radiator's control panel, highlighting the adjustable thermostat feature and the three distinct heat settings.

5.4 Uso do temporizador de 24 horas

The integrated 24-hour timer allows you to program the radiator to turn on or off at specific times.

• Preme o Botón do temporizador (símbolo: reloxo) no panel de control ou no mando a distancia.
• Usa o Up e Abaixo arrows to set the desired number of hours for the timer (up to 24 hours).
• The timer can be set to delay the start or stop of the radiator. Refer to the digital display for timer status.

Image: A hand holding the remote control for the Black+Decker oil radiator, with the 24-hour timer function prominently featured.

5.5 Operación de control remoto

The remote control provides convenient access to all radiator functions from a distance.

• Asegúrese de que o control remoto teña pilas que funcionen.
• Point the remote control towards the radiator's digital display for optimal signal reception.
• All functions available on the control panel (Power, Mode, Temperature Adjustment, Timer) can be operated via the remote control.

6. Mantemento

Regular maintenance ensures the longevity and efficient operation of your radiator.

• Limpeza: Desconecte sempre o radiador e déixeo arrefriar completamente antes de limpalo. Limpe as superficies exteriores cun pano suave e seco.amp pano. Non empregue produtos de limpeza abrasivos nin disolventes. Non mergulle o radiador en auga.
• Almacenamento: When not in use, store the radiator in a cool, dry place. You can use the integrated cable housing to neatly store the power cord.
• Sen mantemento interno: The oil in this radiator is permanently sealed and never needs refilling. Do not attempt to open the radiator.

7 Solución de problemas

If you encounter issues with your radiator, refer to the following table for common problems and solutions.

Se o problema persiste despois de intentar estas solucións, póñase en contacto co servizo de atención ao cliente.

8. Especificacións

Detailed technical specifications for the Black+Decker BXRA2501E Electronic Oil Radiator:

Image: A visual representation of the Black+Decker BXRA2501E oil radiator with its key dimensions labeled: 63 cm in height, 57 cm in length, and 26 cm in width.

9. Garantía e soporte

Your Black+Decker BXRA2501E Electronic Oil Radiator is covered by a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including the warranty period and coverage details.

For technical assistance, troubleshooting beyond this manual, or to inquire about warranty service, please contact Black+Decker customer support. Contact information can typically be found on the product packaging, the official Black+Decker websitio web ou o seu recibo de compra.

When contacting support, please have your model number (BXRA2501E) and proof of purchase readily available.
