1. Información de seguridade
Please read and understand all instructions before assembly and use. Keep this manual for future reference. Failure to follow these instructions may result in injury or product damage.
- Asegúrese de que todas as pezas estean presentes e sen danos antes de comezar a montaxe.
- A montaxe debe realizarse sobre unha superficie suave e limpa para evitar rabuñaduras.
- Use appropriate tools and do not overtighten fasteners.
- This vanity is designed for bathroom use. Do not use for purposes other than intended.
- Manteña as pezas pequenas lonxe dos nenos durante a montaxe.
- Always lift with assistance when moving heavy components.
2. Contido do paquete
Verifique que todos os compoñentes estean incluídos no paquete. Se falta algunha peza ou está danada, póñase en contacto co servizo de atención ao cliente.
- Vanity Cabinet (Engineered Wood)
- Encimera de lavabo de cerámica
- Hardware Pack (screws, hinges, drawer rails, handles)
- Instrucións de montaxe
Figure 2.1: Overall dimensions and component breakdown of the vanity.
3. Configuración e montaxe
This Garvee bathroom vanity is designed for easy assembly. Follow the detailed instructions provided in the hardware pack. A second person is recommended for certain steps.
3.1 Comprobacións previas á montaxe
- Desembale todos os compoñentes e colóqueos sobre unha superficie protexida.
- Identify all hardware using the included parts list.
- Asegúrese de que a zona de instalación estea despexada e nivelada.
3.2 Pasos de montaxe
- Assemble the main cabinet frame using the provided screws and connectors. Ensure all joints are secure.
- Install the drawer rails onto the cabinet frame.
- Assemble the drawer box and attach the drawer front. Insert the drawer into the installed rails.
- Attach the door hinges to the cabinet doors and then to the cabinet frame. Adjust hinges for proper door alignment.
- Secure the ceramic sink top onto the cabinet. The sink features pre-drilled holes (1.5 inches and 1.4 inches) for faucet installation.
- Install the handles on the doors and drawer.
Figure 3.1: Key components for assembly: handles, hinges, drawer rails, and frame construction.
4. Instrucións de funcionamento
The Garvee 24 inch Bathroom Vanity is designed for practical and convenient use in your bathroom.
4.1 Storage Drawer and Doors
- The vanity features a spacious storage drawer for organizing toiletries, cosmetics, and other small items.
- The two cabinet doors provide access to a larger storage area, suitable for towels, cleaning supplies, or taller bottles.
- Ensure items are placed securely to prevent shifting when opening or closing the drawer and doors.
4.2 Ceramic Sink
- The integrated ceramic sink is designed for daily washing and features an overflow design to prevent spills.
- Ensure the faucet is properly installed and sealed to prevent leaks.
Figure 4.1: Vanity with doors and drawer open, demonstrating storage capacity.
5. Mantemento
Proper care and maintenance will ensure the longevity and appearance of your Garvee bathroom vanity.
5.1 Limpeza
- Gabinete: Limpar as superficies de madeira sintética cun pano suave eamp cloth. Avoid abrasive cleaners or harsh chemicals that can damage the finish.
- Lavabo de cerámica: Clean the ceramic sink with mild soap and water. For tougher stains, use a non-abrasive bathroom cleaner. Rinse thoroughly after cleaning.
- Asas: Wipe metal handles with a soft, dry cloth.
5.2 Coidados xerais
- The vanity is constructed from high-quality waterproof material, resisting moisture, mold, and mildew. However, promptly wipe up any standing water to prevent long-term damage.
- The ceramic sink is high-temperature and scratch-resistant, but avoid dropping heavy or sharp objects onto it.
- Periodically check all fasteners and tighten if necessary to maintain structural stability.

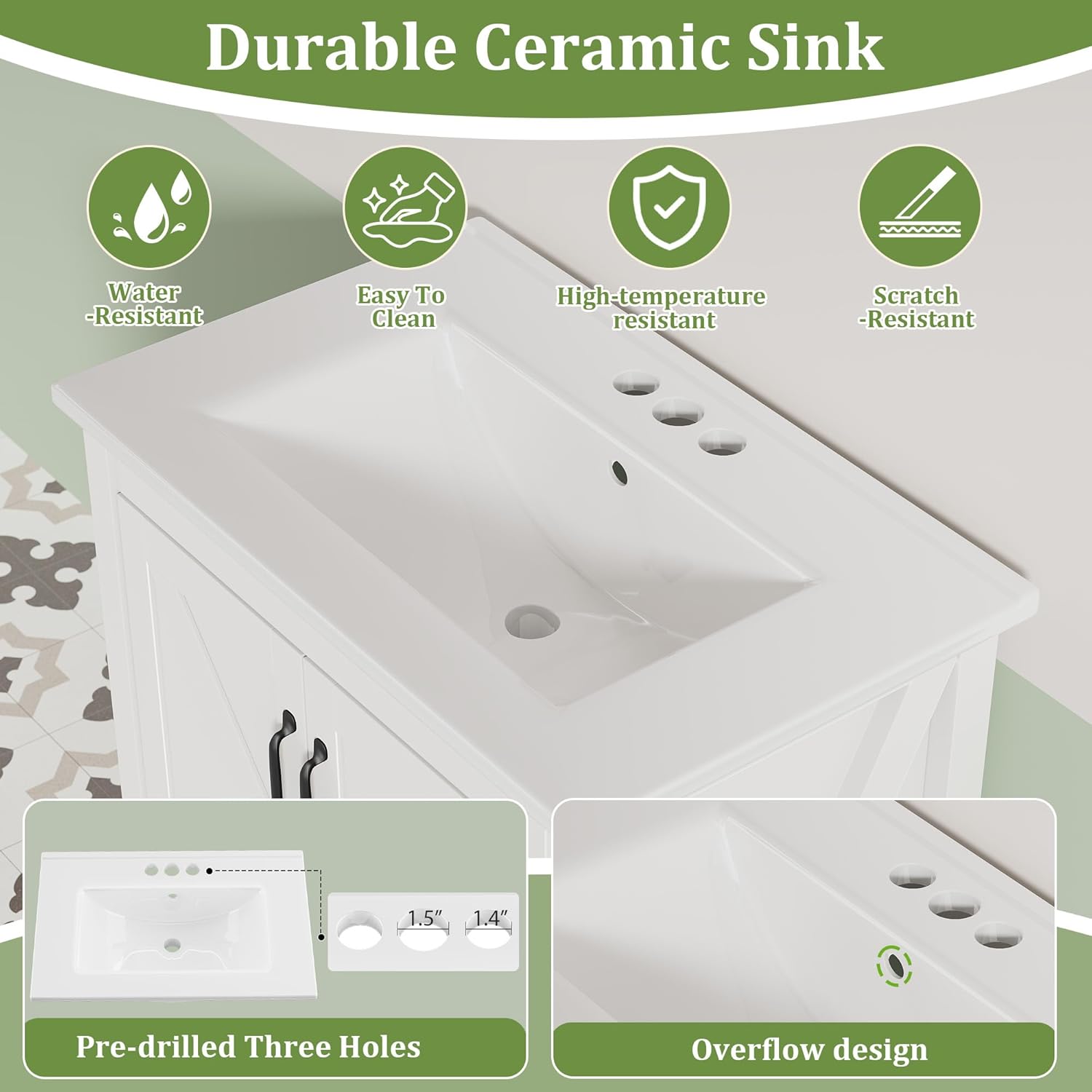

Figure 5.1: Features of the durable ceramic sink for easy maintenance.
6 Solución de problemas
Esta sección aborda problemas comúns que podes atopar co teu tocador.
| Problema | Causa posible | Solución |
|---|---|---|
| Cabinet doors scrape or are misaligned. | As bisagras non están axustadas ou instaladas correctamente. | Adjust the hydraulic hinges using a screwdriver to align the doors. Ensure hinges are securely fastened. |
| Sink top is not level with the vanity. | Uneven floor or improper seating of the sink. | Check the floor for levelness. If the floor is uneven, use shims under the vanity legs. Ensure the sink is seated correctly on the cabinet. |
| O caixón non se desliza suavemente. | Drawer rails are misaligned or obstructed. | Check that the drawer rails are installed correctly and are free of debris. Lubricate rails if necessary. |
| Doors swing too far inward. | No internal stop mechanism. | Consider installing small rubber bumpers or a custom stop on the inside of the cabinet to prevent doors from over-rotating. |
7. Especificacións
Detailed product specifications for the Garvee 24 inch Bathroom Vanity.
- Marca: Garvee
- Nome do modelo: yVpEHPrur2fPIiOHc8fWSgJ6V63t
- Cor: Branco
- Material: Engineered Wood (Frame), Ceramic (Sink Top)
- Dimensións do produto: 24" D x 18.31" W x 34.02" H
- Peso do artigo: 89.3 libras
- Tipo de montaxe: Autoportante, Montaxe no chan
- Característica especial: Scratch Resistant (Sink)
- Compoñentes incluídos: Drawers, Cabinet
- Montaxe necesaria: Yes (Detailed instructions included)
- UPC: 199913378167
8. Garantía e soporte
Garvee is committed to providing high-quality products. For any questions, concerns, or assistance, please refer to the following information.
8.1 Información da garantía
This product comes with a standard manufacturer's warranty against defects in materials and workmanship. Specific warranty details may vary. Please retain your proof of purchase for warranty claims.
8.2 Atención ao cliente
If you require further assistance or have questions not covered in this manual, please contact Garvee customer support through the retailer where the product was purchased or visit the official Garvee websitio para información de contacto.
For online purchases, you may also refer to the seller's return and support policies.
