Introdución
Thank you for choosing the HOMCOM LED Bathroom Mirror. This manual provides essential information for the safe installation, operation, and maintenance of your new mirror. Please read these instructions thoroughly before installation and keep them for future reference.
Image: The HOMCOM LED Bathroom Mirror, an oval mirror with illuminated edges, installed in a modern bathroom setting above a white sink with a gold faucet. The mirror displays a warm light glow.
Información de seguridade
- Instalación eléctrica: A instalación debe ser realizada por un electricista cualificado de acordo coa normativa local de cableado. Asegúrese de que a subministración eléctrica estea desconectada antes da instalación ou o mantemento.
- Resistencia á auga: This mirror is IP44 rated, meaning it is protected against splashing water. Do not immerse the mirror in water.
- Manipulación do vidro: Handle the mirror with care. Although made of tempered glass, excessive force can cause breakage. In case of breakage, tempered glass shatters into small, less sharp pieces for safety.
- Limpeza: Use só suave, damp cloths and mild, non-abrasive cleaners. Avoid harsh chemicals that may damage the mirror surface or electrical components.
- Ventilación: Asegúrate de que o baño teña unha ventilación axeitada para evitar a acumulación excesiva de humidade, que pode afectar os compoñentes electrónicos co paso do tempo.
Contido do paquete
Comprobe que todos os compoñentes estean presentes antes de comezar a instalación:
- 1 x HOMCOM LED Bathroom Mirror
- 1 x Mounting Hardware Kit (screws, wall anchors)
- 1 caixa de derivación
- 1 x manual de instrucións
Image: A brown cardboard box with the HOMCOM logo and text indicating '1x PACKAGE', representing the product packaging.
Especificacións
| Característica | Especificación |
|---|---|
| Número de modelo | FR834-888V00CR |
| Dimensións | 80 cm de longo x 50 cm de ancho |
| Poder | 26 vatios |
| Material | Vidro templado de 4 mm |
| Cores claras | Warm White (3000K), Natural (4500K), Cold White (6500K) |
| Brillo | Dimmable (10% - 100%) |
| Características | Anti-fog, Touch Sensor, Memory Function, Front & Back Lighting |
| Resistencia á auga | Clasificación IP44 |
| Peso | 3.5 kg |
Image: A diagram illustrating the mirror's dimensions: 80 cm in height, 50 cm in width, and 4 cm in depth.
Image: A visual representation of the mirror's features, including 3 adjustable light colors, dimmable brightness, anti-fog function, memory function, compatibility with touch and wall switches, front and back lighting, HD imaging, and IP44 water resistance.
Configuración e instalación
Requírese unha instalación profesional. This mirror is designed for wall mounting and requires hardwiring to an electrical circuit. Ensure the power supply is turned off at the main breaker before proceeding.
- Escolla localización: Select a suitable wall location in your bathroom, ensuring it is within reach of the electrical wiring.
- Marcar os puntos de perforación: Use the provided template or measure carefully to mark the drilling points for the mounting hardware.
- Perforación: Perforar buratos nos puntos marcados e insertar ancoraxes de parede se é necesario.
- Soporte de montaxe: Fixe o soporte de montaxe á parede cos parafusos proporcionados.
- Conexión eléctrica: Connect the mirror's wiring to your household electrical circuit inside the provided junction box. Ensure all connections are secure and insulated. This step must be performed by a qualified electrician.
- Espello colgado: Carefully hang the mirror onto the wall bracket, ensuring it is securely seated.
- Restaurar enerxía: Once installation is complete and all connections are checked, restore power at the main breaker.
Image: An illustration demonstrating two ways to control the mirror's functions: via a wall switch (not included) or directly using the integrated touch sensor on the mirror surface.
Instrucións de funcionamento
The mirror features a smart touch control system and memory function.
- Encendido/apagado: Briefly touch the power icon on the mirror to turn the light on or off.
- Axustar a cor da luz: With the light on, a short press on the touch sensor will cycle through the three light color temperatures: Warm White (3000K), Natural (4500K), and Cold White (6500K).
- Adjust Brightness (Dimmable): With the light on, a long press on the touch sensor will adjust the brightness from 10% to 100%. Release your finger when the desired brightness is reached.
- Función anti-néboa: The anti-fog function activates automatically when the mirror light is turned on. It ensures a clear reflection even in humid conditions.
- Función de memoria: The mirror will remember your last light color and brightness setting when turned off and on again.
Image: Instructions for operating the mirror's lighting. A short press on the touch sensor changes the light color (3000K Warm, 4500K Natural, 6500K Cold), while a long press adjusts the brightness.
Image: A visual demonstration of the anti-fog function, showing a clear central image of a woman in a humid bathroom environment.
Mantemento
- Limpeza da superficie do espello: Use a soft, lint-free cloth and a glass cleaner or a mixture of water and mild soap. Spray the cleaner onto the cloth, not directly onto the mirror, to avoid liquid seeping into the electrical components. Wipe gently.
- Cleaning the Frame/Edges: Limpe cun suave, damp cloth. Avoid abrasive materials or harsh chemicals.
- Inspección periódica: Periodically check the electrical connections and mounting hardware for any signs of wear or loosening. Ensure the power is off before inspection.
- Avoid Over-Wetting: Do not allow water to accumulate on the mirror's edges or electrical components.
Resolución de problemas
| Problema | Causa posible | Solución |
|---|---|---|
| A luz do espello non se acende. | No power supply; Loose electrical connection; Faulty touch sensor. | Check circuit breaker; Verify electrical connections (by a qualified electrician); Contact customer support. |
| A función antivaho non funciona. | Mirror light is off; Malfunction. | Ensure mirror light is on; Contact customer support if problem persists. |
| Light brightness or color cannot be adjusted. | Incorrect operation; Faulty touch sensor. | Refer to 'Operating Instructions' for correct touch gestures; Contact customer support. |
| Mirror surface is cracked or damaged. | Danos por impacto. | Discontinue use immediately to prevent injury. Contact customer support for replacement options. |

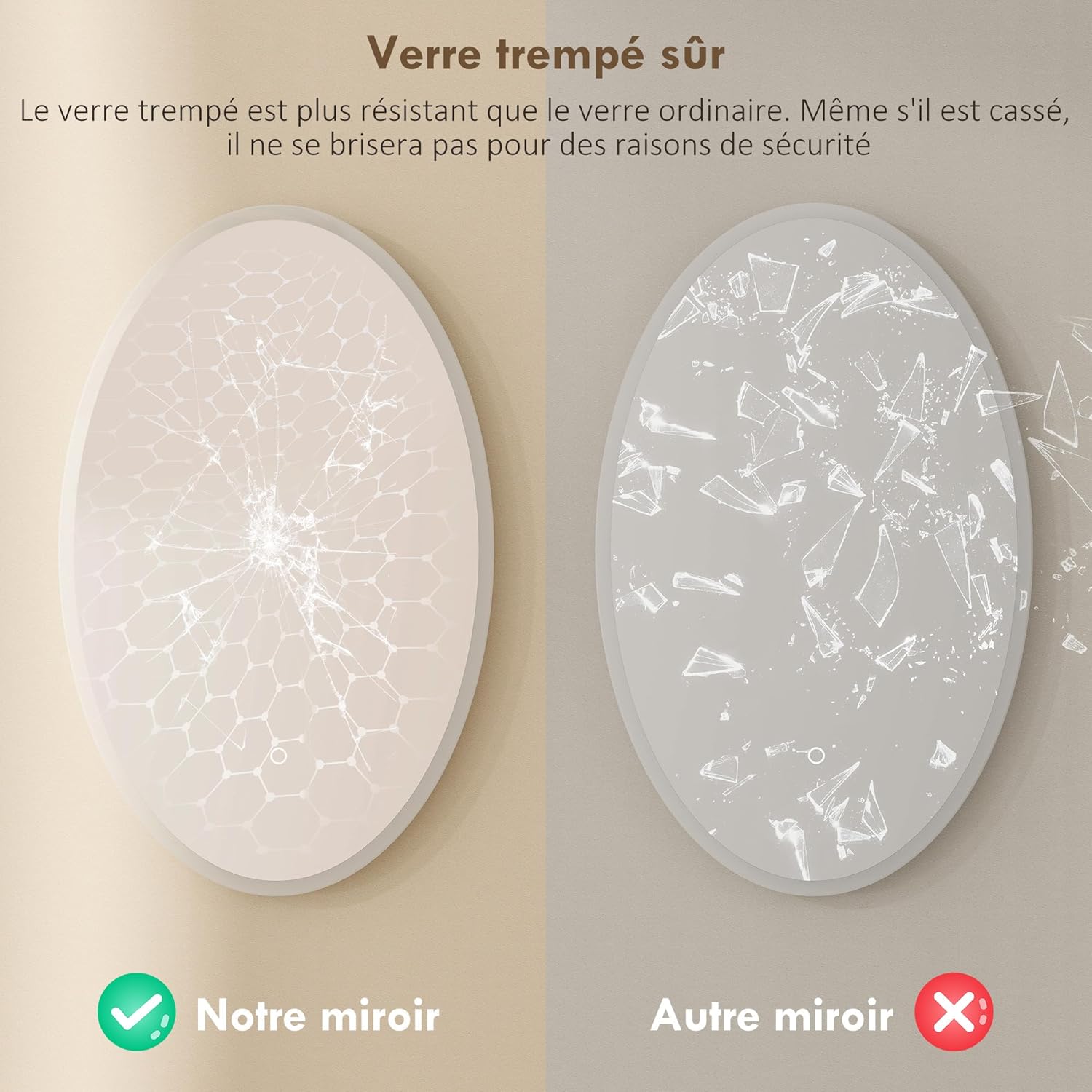

Image: A comparison showing the safety of tempered glass (left), which breaks into small, less hazardous pieces, versus ordinary glass (right), which breaks into large, sharp shards.
Garantía e Soporte
Para obter información sobre a garantía, consulte os termos e condicións proporcionados no momento da compra ou visite o sitio web oficial de HOMCOM. website. If you encounter any issues or require technical assistance, please contact HOMCOM customer support with your model number (FR834-888V00CR) and proof of purchase.
Atención ao cliente de HOMCOM: www.aosom.com (Aosom é a empresa matriz de HOMCOM)
