IIWEY Q7 Dual 4K Dash Cam with CPL Filter User Manual

1. Produto rematadoview

The IIWEY Q7 is a dual-channel dash camera system designed to record both front and rear views of your vehicle in 4K resolution. It features advanced STARVIS sensors and High Dynamic Range (HDR) for enhanced low-light performance. The system includes a 40mm Circular Polarizing Lens (CPL) filter to reduce glare and improve video clarity, along with a 128GB microSD card for immediate use.

Características principais:

• Dual 4K Recording: Captures front and rear video at 3840x2160p resolution simultaneously.
• Dual STARVIS + HDR Night Vision: Utilizes 2nd-generation STARVIS sensors and f/1.6 lenses with dual-channel HDR for clear recordings in various lighting conditions.
• Integrated CPL Filter: A 40mm polarizing lens reduces glare from reflections and enhances color saturation for clearer video.
• 128GB MicroSD Card Included: Ready for immediate use with ample almacenamento.
• Gravación en bucle e sensor G: Sobrescribe automaticamente o antigo footage and locks important incident videos to a protected folder.
• Amplo View & IPS Screen: 170 ° de gran angular view for comprehensive coverage and a 3.18" IPS screen for live view e reprodución.

Imaxe: Máis deview of the IIWEY Q7 Dual 4K Dash Cam system, illustrating front and rear camera views and STARVIS technology.

2. Configuración e instalación

2.1 Inserción da tarxeta MicroSD

1. Asegúrate de que a cámara do salpicadero estea apagada.
2. Localiza a ranura para tarxetas microSD na cámara do salpicadero.
3. Insert the provided 128GB microSD card with the contacts facing the correct direction until it clicks into place.
4. It is recommended to format the microSD card within the dash cam settings before first use.

2.2 Montaxe da cámara

1. Cámara frontal: Escolle unha localización no parabrisas que non obstrua a túa view, normalmente detrás da parte traseiraview mirror. Clean the area thoroughly. Attach the suction cup mount or adhesive mount firmly.
2. Cámara traseira: Monte a cámara traseira no parabrisas traseiro, garantindo unha visión clara view of the road behind. Route the cable discreetly to the front camera.
3. Adjust the lens angles of both cameras to cover the desired field of view (170° for each).

2.3 Conexión de alimentación

1. Connect the power cable to the dash cam and plug the other end into your vehicle's 12V power outlet (cigarette lighter socket).
2. Route the power cable along the edges of the windshield and dashboard to keep it tidy and out of the way.

2.4 CPL Filter Attachment

The CPL filter is designed to be easily attached and removed from the front camera lens.

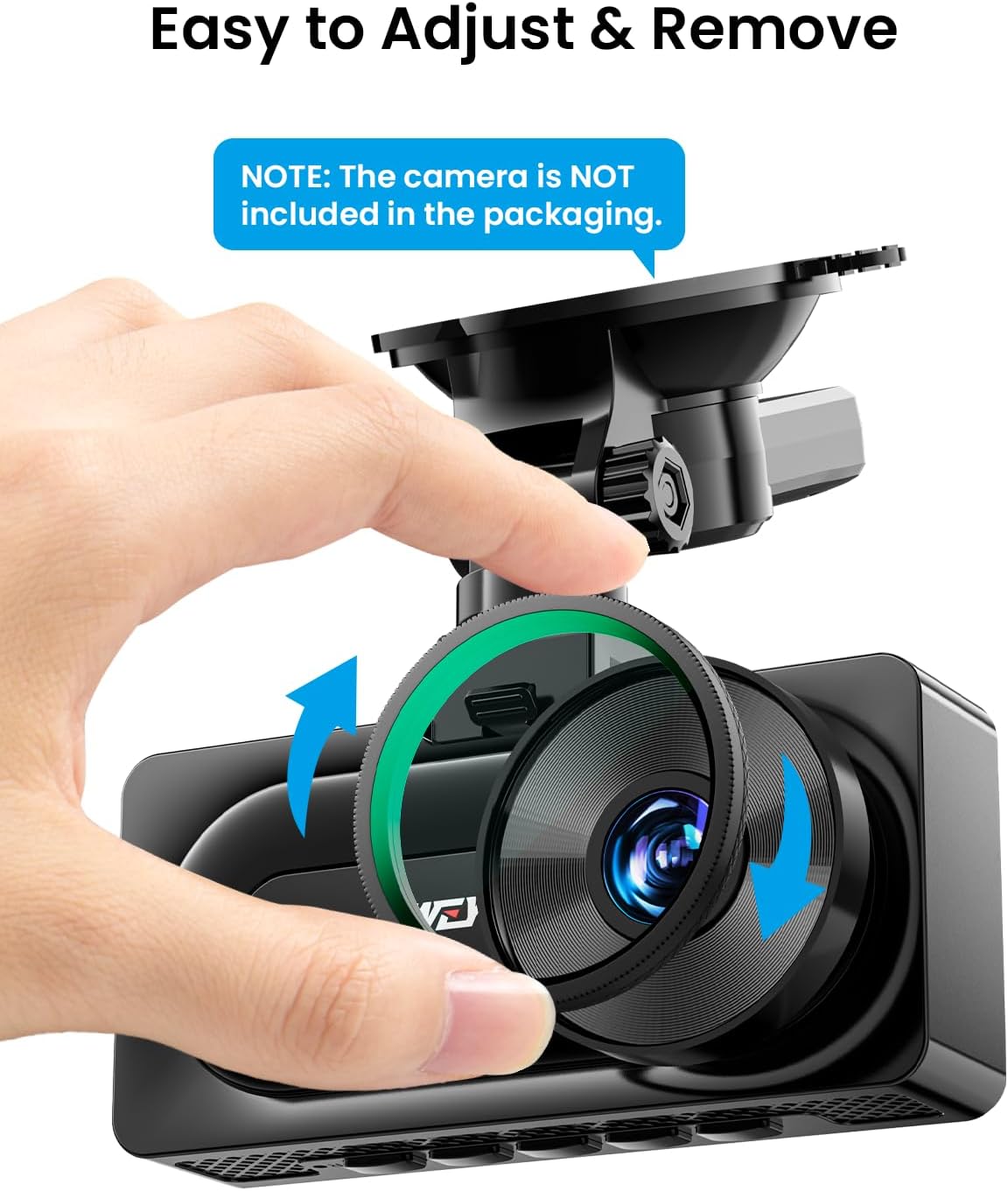

Image: Illustration of how to easily attach and remove the CPL filter from the dash cam lens.

1. Ensure your IIWEY Q7 dash cam has pre-threaded lens for CPL filter attachment.
2. Gently screw the 40mm CPL filter onto the front camera lens until secure.
3. Rotate the CPL filter while observing the screen to achieve the desired glare reduction and color enhancement.

Image: Compatibility check for the CPL filter, confirming it fits the IIWEY Q7 model with pre-threaded lenses.

3. Instrucións de funcionamento

3.1 Encendido/apagado

• A cámara do salpicadero acenderase automaticamente e comezará a gravar cando se acenda o contacto do vehículo.
• Apagarase automaticamente pouco despois de cortar o contacto.
• Para acender/apagar manualmente, manteña premido o botón de acendido/apagado.

3.2 Modos de gravación

• Gravación en bucle: The dash cam continuously records video in short segments (e.g., 1, 3, or 5 minutes). When the microSD card is full, the oldest unprotected files están sobreescritas.
• Sensor G (gravación de emerxencia): In the event of a sudden impact or collision, the built-in G-sensor will detect the event and automatically lock the current video segment, preventing it from being overwritten by loop recording. These fileOs ficheiros almacénanse nunha carpeta protexida e separada.
• Parking Monitor (Optional): If supported and properly wired (requires a hardwire kit, sold separately), the dash cam can record when motion or impact is detected while the vehicle is parked.

3.3 CPL Filter Adjustment

The CPL filter can be rotated to optimize its effect. Rotate the filter until reflections on the windshield or dashboard are minimized, and colors appear more vibrant on the dash cam's screen.

Image: Visual comparison demonstrating how the CPL filter reduces reflections and glare on the road.

Image: Explanation of CPL filter benefits, including enhanced color tone, improved details, and reduced light reflection.

4. Mantemento

4.1 Coidado da tarxeta MicroSD

• Format the microSD card regularly (e.g., once a month) within the dash cam's settings to ensure optimal performance and prevent data corruption.
• Use only high-quality, high-endurance microSD cards recommended for dash cam use.

4.2 Limpeza das lentes

• Gently wipe the camera lenses (front, rear, and CPL filter) with a soft, lint-free cloth.
• Avoid using abrasive cleaners or solvents that could damage the lens coating.

4.3 Coidados xerais

• Avoid exposing the dash cam to extreme temperatures for prolonged periods.
• Do not attempt to disassemble or modify the dash cam, as this will void the warranty.

5 Solución de problemas

5.1 A cámara do salpicadero non se acende

• Check the power connection to ensure it is securely plugged into both the dash cam and the vehicle's 12V outlet.
• Verify that the vehicle's 12V outlet is functioning correctly.
• Try a different power cable or outlet if available.

5.2 Problemas de gravación

• Vídeo sen gravación: Ensure a microSD card is inserted and properly formatted. Check if the card is full (if loop recording is off or protected files occupy too much space).
• Mala calidade de vídeo: Clean the camera lenses. Ensure the CPL filter is correctly adjusted. Check dash cam settings for resolution and exposure.
• Sensor G demasiado sensible/non o suficientemente sensible: Adjust the G-sensor sensitivity setting in the dash cam menu.

5.3 Screen Display Issues

• If the screen is black, check if the screen saver function is enabled in the settings.
• Restart the dash cam.

5.4 General Reset

If issues persist, try performing a factory reset through the dash cam's menu settings. This will revert all settings to their default values.

6. Especificacións

7. Garantía e soporte

For warranty information and technical support, please refer to the documentation included with your product packaging or visit the official IIWEY websitio. Tamén podes contactar directamente co vendedor para obter axuda.
